Description
SSB (single-sideband) radio has been the gold standard in long-distance marine communication for 100 years. Take the fuss out of installing SSB radio in your vessel with this SeaTech SSB package, which includes all the equipment, cabling, and connectors you need. Then, get worldwide access to email and weather over SSB, all for one affordable price.

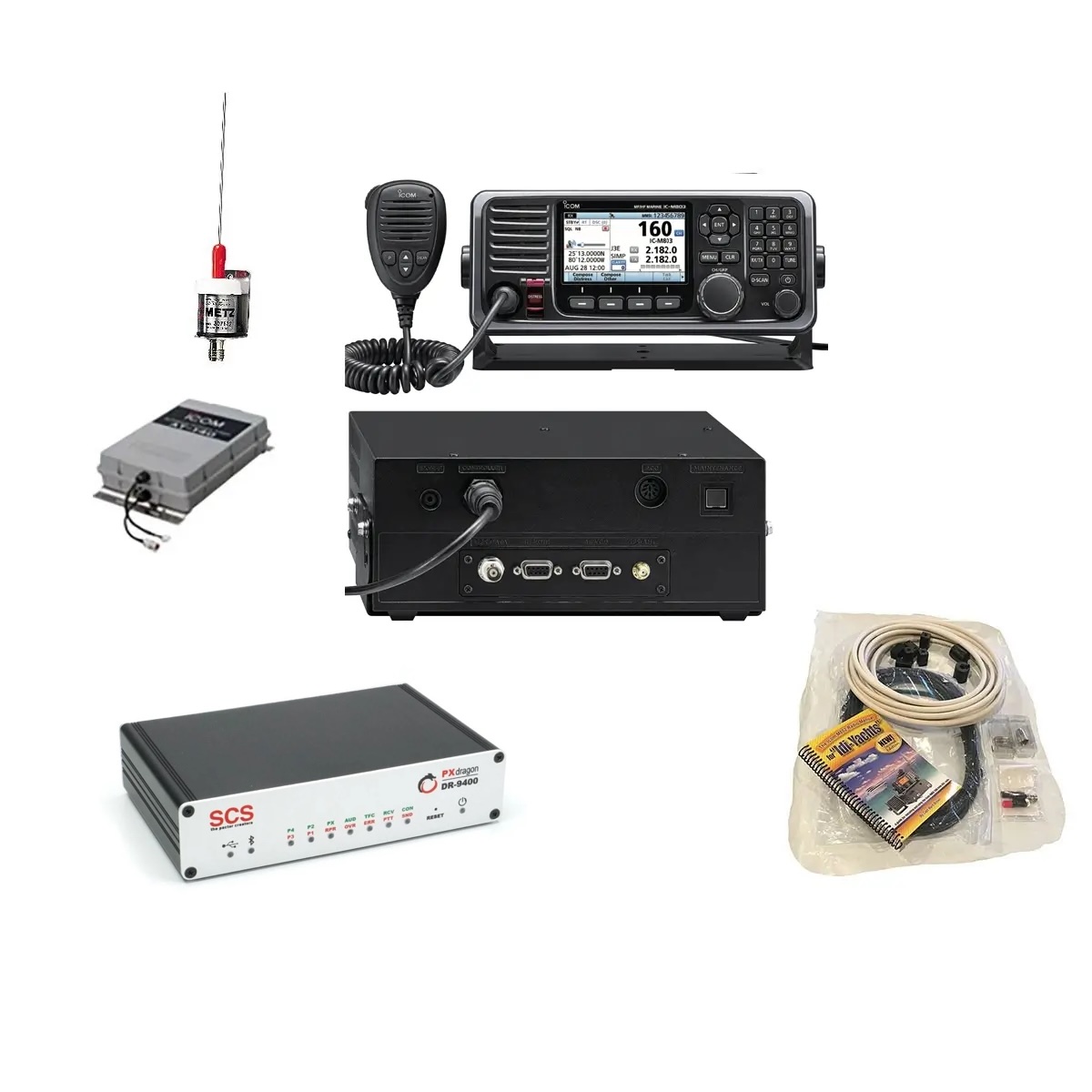

SSB Radio Package Includes:
- ICOM M803 Class E DSC Marine HF Single-Sideband Radio. Improving on the venerable M802, the brand new Icom M803 MF/HF Marine SSB Transceiver is full of features any cruiser would not want to be without. First, increase your safety at sea with built-in digital selective calling (DSC) updated for 2020, the latest in one-touch emergency communications technology. Next, digital communications are also made simple with this SSB radio. Then, when voice communications are difficult, send and receive messages with the one-touch email access frequency, mode, and bandwidth settings. The large full-color TFT LCD display with night mode allows for easy reading, day or night. At sea, email has never been easier. The M803 is great for weather fax, communications to many, and email access (when connected to a PACTOR modem). Send and receive messages with the one-touch email access frequency, mode and bandwidth settings. 150W power output; 830 channels including 160 programmable, 72 ITU SSN duplex, 249 ITU SSB simplex, 193 ITU FSK duplex, and 160 email; Digital Signal Processor (DSP); Last Call recording/playback, and One-Touch E-Mail Access. The new M803 has a built-in GPS Receiver and includes an external GPS Antenna with 5m cable. (MSRP $4447)
- ICOM AT-140 Automatic Tuner (MSRP $882)
- GAM SS-2 WeatherFax/HF/DSC Antenna. A marine DSC antenna is required for proper operation of the ICOM M803’s DSC “DISTRESS” button. This antenna provides sail and power boaters with a slim, stainless steel, 54″ whip mounted to a nickel-plated post into a 1-1/2″ diameter steel coil that will out-perform fiberglass alternatives. (MSRP $189)

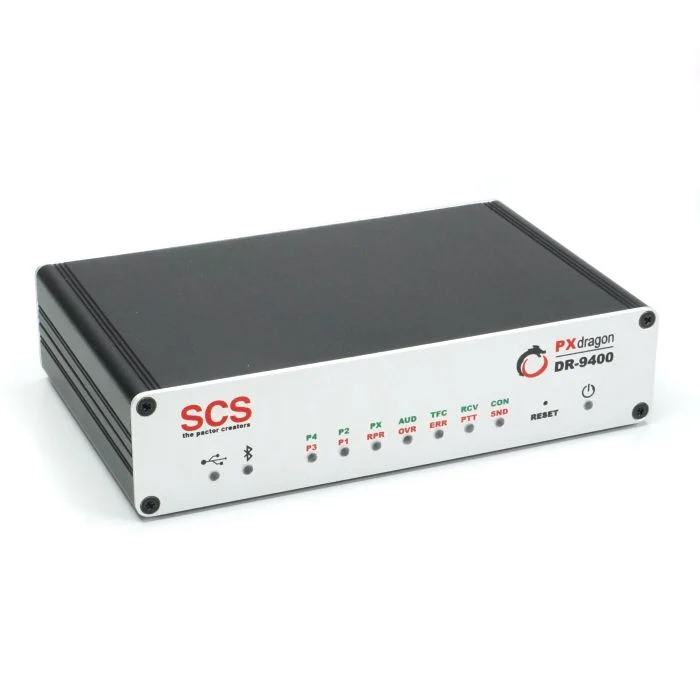

- SCS PX-Dragon DR-9400 PACTOR4 HF SSB Radio Modem with USB-C and Ethernet LAN Connections (MSRP $2099)
- Optional: Add WiFi and Bluetooth to the DR-9400 for wirefree usage and reduced RF interference (see upgraded kit here: (for upgraded package click here)
- SeaTech Installation Diagrams
- SeaTech Installation Wiring Kit (~$500 Value)
- ICOM OPC-1465 Radio to Tuner Control Cable (30 Ft) w/2 Ferrite Filters
- 30ft RG213 Radio to Tuner Coax Cable w/10 Ferrite Filters & PL-259 Connectors
- 30ft Coax cable with PL259 connectors with Ferrite Filter for the DSC Antenna
- NMEA0183 Adapter and wire for M803 (allows you to feed NMEA data from M803’s GPS to the Pactor modem)
- Custom 6ft Modem to Radio Cables (Power/Data & Control and Audio) w/Ferrite Filters
- Additional Ferrite Filters for PACTOR Modem USB Cable and NMEA wiring
Simple SSB Solutions For Modern Cruising.
Don’t yet have an insulated backstay or copper ground plane in your boat? Make it SeaTechEasy by adding the following additional options to your order:
- KISS-SSB Counterpoise/Ground Plane – $189
- Attached with one wire to the antenna tuner. No corrosion, no ground loops, no problems
- GAM/McKim Split Lead Antenna – $465
- Easily slides up your backstay without touching your rig. The ultimate DIY SSB antenna
Use AirMail for Sailmail and Saildocs:
Decode WeatherFax Images for free:
Amateur Radio Users can access Winlink and More:
Download as PDF
