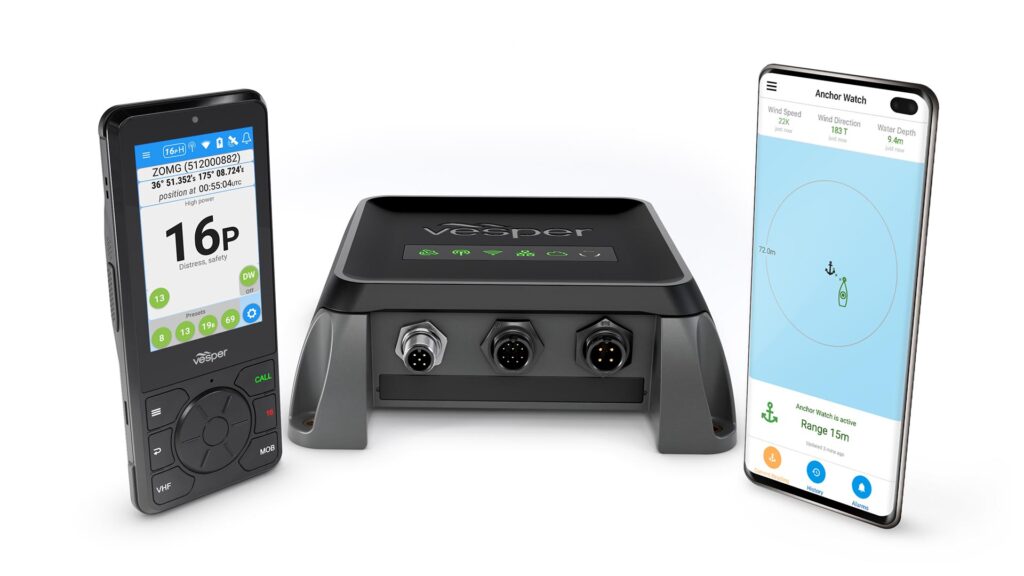

Vesper Cortex V1 VHF radio with SOTDMA smartAIS transponder and remote vessel monitoring.

$1,899.99

Cortex V1 VHF + AIS + Monitor

Advanced multi-station VHF with intuitive touchscreen operation. Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone.

    • VHF – The world’s most advanced VHF with multi-station wireless touchscreen handsets
      • Add Additional H1 and/or H1P portable handset for multiple stations
    • AIS – Class B SOTDMA smartAIS transponder with integrated splitter
      • Built-in Class B SOTDMA with no-loss antenna splitter
      • Built-in WiFi and Cellular connectivity on monitoring on board and ashore
      • Low power consumption hub
      • 10Hz GPS antenna
      • Monitor up to 5 sensors connected directly
      • Network to NMEA2000 to monitor sensors remotely and recieve Man Overboard alarms from other devices

Add Additional Wired and/or Wireless VHF Handsets to your Cortex System!

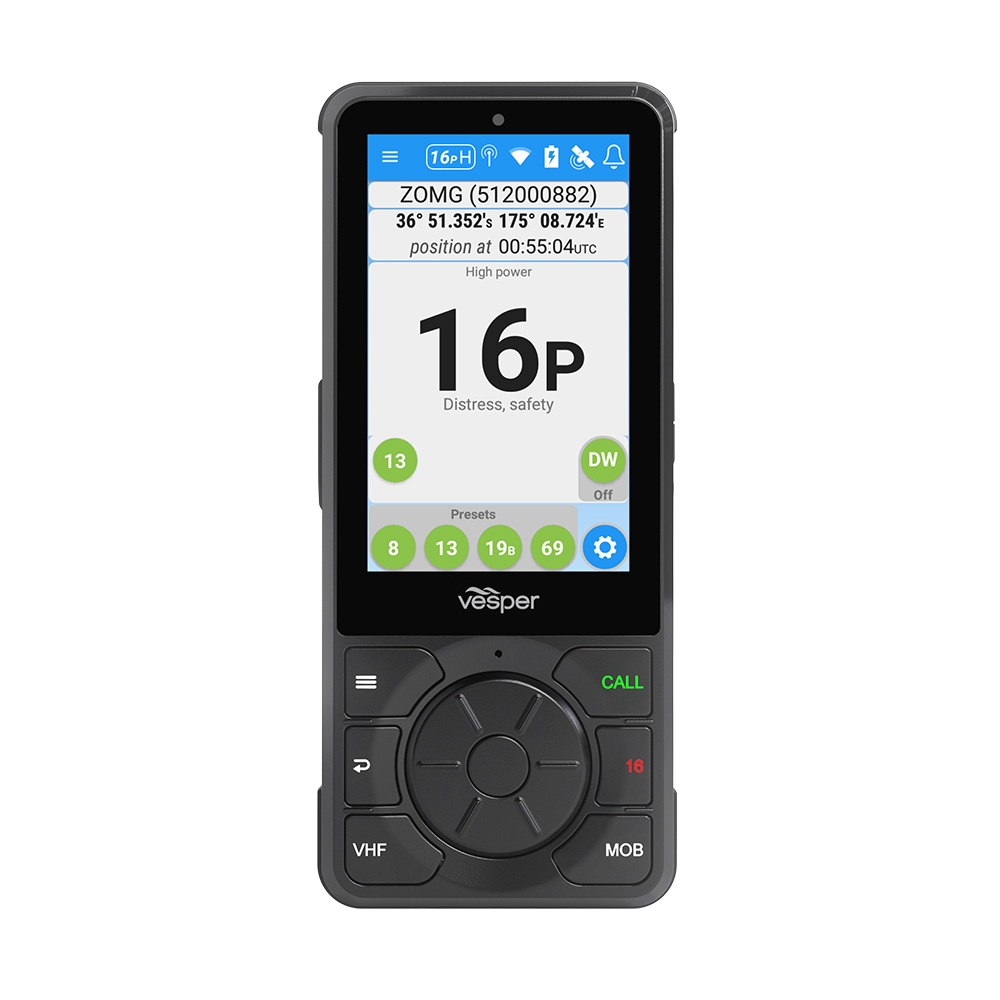

Vesper Cortex-H1P Wireless handset with charging cradle and non powered cradle

Cortex H1P Portable/Wireless Handset with Charging Cradle

For the ultimate safety, add a battery powered rechargeable handset to your Cortex. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

Features:

  • Rechargeable, portable battery powered handset for connection to Cortex M1
  • 4-inch multi-touch display with gorilla glass for maximum durability
  • Single hand operation with unique click wheel and dedicated buttons
  • Wet and gloves capable touchscreen
  • Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
  • 85 dBA of crystal-clear audio
  • Combined AIS and VHF display with voiced alerts
  • Touch a vessel onscreen for direct calling (DSC)
  • Add 10 handsets to Cortex M1

What's In The Box?

  • H1P Portable Rechargable Handset
  • Charging H1P Cradle
  • Non Powered H1 Cradle

Specifications:

  • Size: 164.8 mm x 71.8 mm x 21.4 mm (6.4882” x 2.8268” x 0.8425”)
  • Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
  • Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
  • Weight: 235g
  • Environmental: Waterproof (IPX7)
  • Operating Temperature:  -25°C to +55°C (-13°F to 131°F)
  • Audio: 3W Class D amplifier, THD < 5% @ 85dBA

Display:

  • Screen: LCD TFT Si, 640 x 800, 24bit Color
  • Touch: Capacitive, optically bonded to LCD. Glove and salt water operable
  • Backlight: 600 cd/m2
  • Ambient light sensor for auto dimming

Vesper Cortex-H1 Tethered handset, bulkhead connector and non-powered cradle

Cortex H1 Tethered Handset with Non-Powered Cradle

For the ultimate safety, add a battery powered rechargeable handset to your Cortex. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat.

A revolution in marine technology that will change your VHF experience forever. An intuitive touchscreen that is engineered for durability to withstand the rigours of the harsh marine environment. Audio that’s as loud as a train but clear as a bell. The future of VHF is here.

Features:

  • An experience so intuitive
  • Secure Handset Mounting and Charging Cradle
  • One-touch DSC
  • Handsets like no other
  • Wireless freedom
  • Up to 85dBA audio
  • Wide angle, sunlight viewable
  • Pinch-to-zoom
  • Critical data always in view
  • Durability in wet and rough conditions
  • Gorilla Glass
  • Wet use touchscreen

Specifications:

  • Size: 164.8 mm x 71.8 mm x 21.4 mm (6.4882” x 2.8268” x 0.8425”)
  • Power Supply: 12V, 1A max, 200mA nominal, 12 -24V compatible
  • Battery: Lithium Polymer, 2 hour full charge, >12 hours nominal operation
  • Weight: 235g
  • Environmental: Waterproof (IPX7)
  • Operating Temperature:  -25°C to +55°C (-13°F to 131°F)
  • Audio: 3W Class D amplifier, THD < 5% @ 85dBA

Display:

  • Screen: LCD TFT Si, 640 x 800, 24bit Color
  • Touch: Capacitive, optically bonded to LCD. Glove and salt water operable
  • Backlight: 600 cd/m2
  • Ambient light sensor for auto dimming

Description

Cortex Logo in Black



VHF

The world’s most advanced VHF with multi-station wireless touchscreen handsets

AIS

Class B SOTDMA smartAIS transponder with integrated splitter.

Monitor

Track and control, whether on board or ashore.

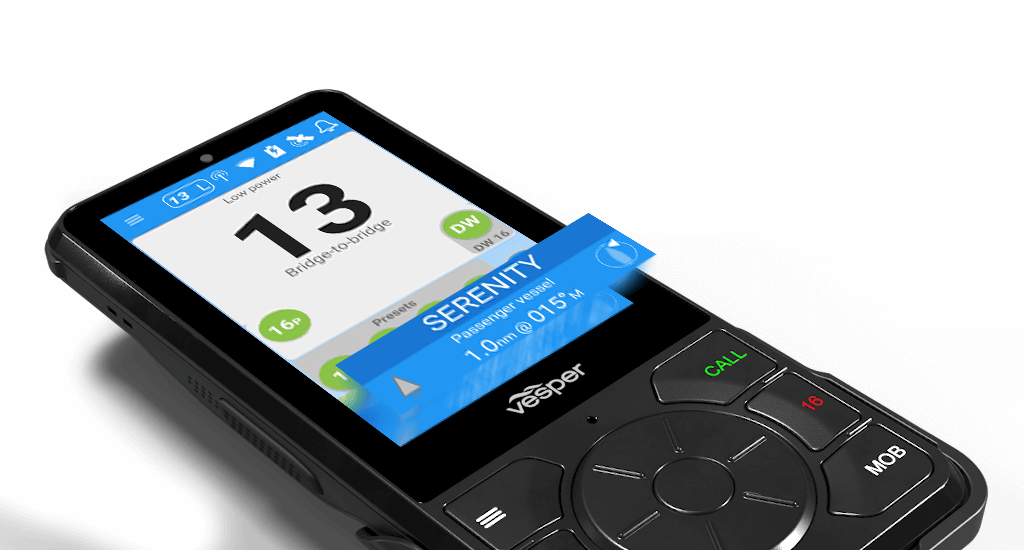

VHF Reimagined

A revolution in marine technology that will change your VHF experience forever.

An intuitive touchscreen that is engineered for durability to withstand the rigours of the harsh marine environment.

Audio that’s as loud as a train but clear as a bell.

The future of VHF is here.



The power of VHF and AIS combined

Cortex is the world’s first VHF with high speed SOTDMA AIS transponder technology, making your boat visible to others.

A built-in heading sensor tells other vessels your direction, helping them more accurately predict potential collisions.

Be armed with critical information about vessels, AIS marks (AtoNs) and man overboard devices on your MFD, mobile or Cortex handset.



Collision Avoidance

Alert

Cortex continuously calculates crossing situations and generates collision alarms for critical action, alerts if your anchor is dragging and activates MOB alarms for immediate retrieval. Instead of ambiguous bells or tones, Cortex sounds the alarm with voiced alerts that escalate until acknowledged.

Inform

Continuously view crossing situations, navigation light sectors and complete trial maneuvers while talking on the VHF radio. See critical information that is easy to understand and take action.

Call

Initiate direct calls (DSC) with other vessels by simply tapping the vessel on your handset touchscreen. Initiate VHF calls to friends or quickly hail another vessel when every second counts.



Monitor

Cortex combines built in sensors and NMEA2000 connectivity with free basic monitoring. Using cellular connectivity, you can view twice-daily updates of power, location, wind, depth, bilge, temperature and more on their smartphones. The Cortex Monitor Premium subscription unlocks real-time vessel status, instant alerts and device control for boat systems like refrigerators, icemakers, lights or heaters.



Anchor Watch

Sleep soundly or explore with abandon knowing that your boat is exactly where you anchored it.

By combining your position and heading, Cortex will determine if your anchor drags. If your boat moves outside your anchor swing radius the alarm will sound on Cortex handsets and your smartphone.

Receive alerts while ashore via the Cortex Monitor App on your smartphone.

Want to know if water depth, wind speed or direction changes while anchored? No problem, Cortex will keep watch and alert you.

Additional information

Weight 3.25 lbs
Dimensions 5 × 8 × 14 in
