Description

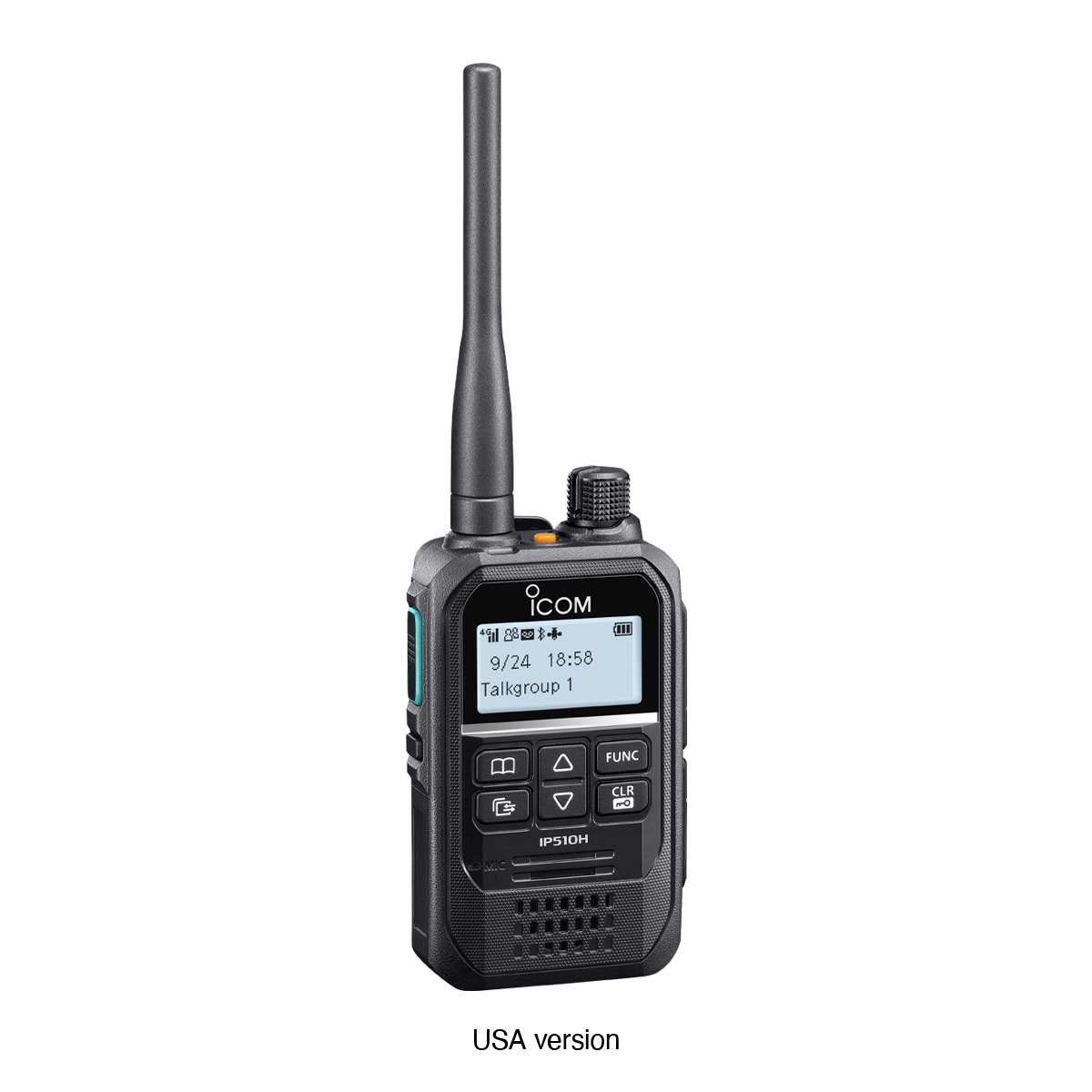

IP510H
Seamless Communication Coverage In 4G LTE and Wi-Fi®
Hybrid IP Transceiver can provide seamless communication in LTE network and Wi-Fi environments
The IP510H is a hybrid IP transceiver that can communicate under LTE network and Wi-Fi environments. It is possible to convey information timely without worrying about dead zones. And it is switched automatically in the LTE network and Wi-Fi environments without any operation on the radio. It is possible to use the IP510H with confidence even in places where LTE signals tend to be weak, such as underground or in tunnels, if you are in a Wi-Fi environment and when users move from outdoors to indoors. The IP510H supports simultaneous calls like on a cell phone. It is ideal not only for the scene of using conventional IP transceivers, but also for the needs of transportation, infrastructure, and security industries, which require more stable communications. Bluetooth® function supports cable-less operation and improves operability and mobility. And making the smallest class of compact IP transceivers in the industry.
Simultaneous TalkListen™ function for phone-style conversations
Multiple user communication in the user group
Traditional two-way radios have to wait for the other party to finish speaking before taking turns, resulting in a large time lag between calls. The IP510H supports simultaneous, phone-like calls, allowing people to talk to each other at the same time and facilitating natural interactions. It also supports multi-party calls, making it ideal for conference calls. People can also pause a call in progress to pass on important messages.
Security Function
Supporting WPA3 Enterprise/Personal and Wi-Fi standards : IEEE802.11 a/b/g/n/ac which can be connected to a network with a high level of security environment. By implementing its features, users can enjoy a more secure and reliable wireless experience, making it a vital component of modern network security strategies.
Built-in Bluetooth® Function Supports Cable-less operation
One of the primary advantages of Bluetooth® function is the freedom it provides users. Without the constraints of cables, individuals can move around freely while using their devices. This is particularly beneficial in environments where mobility is essential, such as during workouts, while commuting, or in professional settings where multitasking is required.
Smallest class compact size
The size and weight are approximately 59.7 x 144.7 x 34.9 mm / 2.35 x 5.69 x 1.37 inch with BP-314 and 220 g / 7.7 oz with BP-314 and antenna. Making it the smallest class of compact IP transceivers in the industry.
icom ip510h lte and wifi hybrid auto roaming 2-way radio waterproof

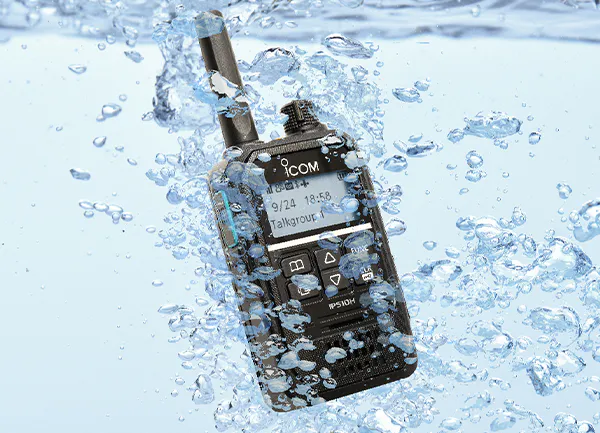

IP67 Dustproof and waterproof
The IP510H is dust and water resistant to an IP67 rating and can withstand submersion in water for up to 30 minutes. It’s perfect for use around water, whether in the kitchen or outdoors, even in harsh weather conditions.

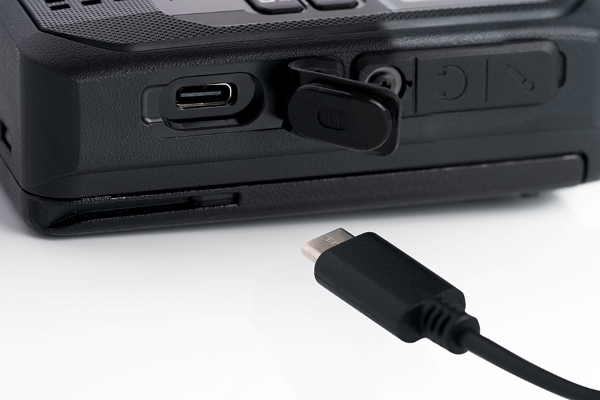

USB Type-C™ Charging
The charging terminal is USB Type-C™, which supports a variety of protocols and power delivery options and is highly versatile. This USB Type-C™ charging allows battery charging without turning off the power and supports fast charging.
Emergency Features to Enhance User Safety
The IP510H is equipped with an emergency button, Man Down, and Lone Worker functions, allowing it to automatically send an emergency call to a dispatcher or coworker in case of an incident. Implementing these features will provide a more secure environment for users.
Recording and Playback functions
It is possible to record and playback the received audio. The maximum number of recordings saved is 10 and the total recording time is 4 minutes. If the total recording time exceeds 4 minutes, the oldest recordings will be deleted first, even if the number of saved recordings is less than 10.

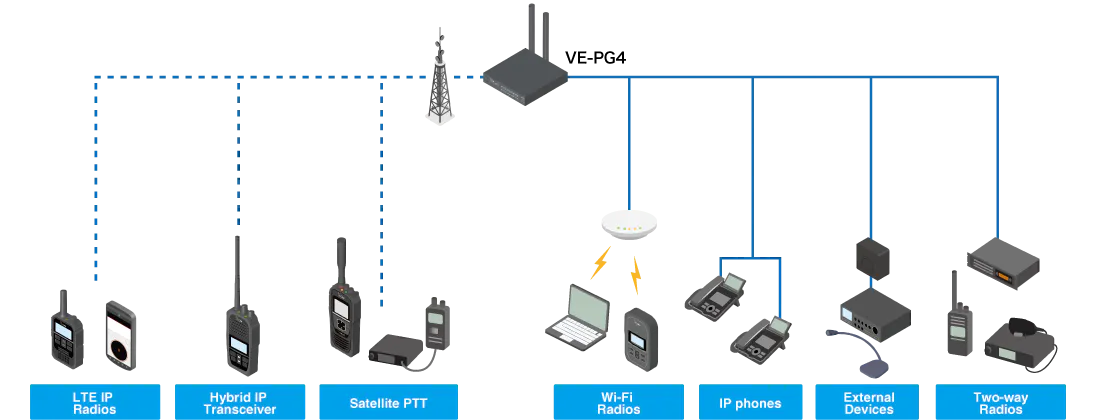

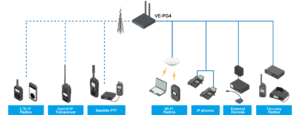

Interoperability with conventional radio equipment and IP transceiver
Using the VE-PG4 that is a versatile RoIP (Radio over IP network) gateway unit, it is possible to build a calling system that covers a wide range of communications.
Compatibility for IP510H
Compatible with current and previous Icom LTE Radio models such as IP501H, IP503H, IP504H, IP501M, and IP500APP
The IP510H is compatible with the IP501H, IP730D, IP740D, and IP500APP when using the CONNECT US SIM (AT&T).
Other
- Bluetooth PTT supported (SPP only)
- 1000 mW Loud and Clear Audio
- Vibration alert function notifies of incoming call
- Short Text Message
- Dual SIM capability
General
| Power Supply Voltage | 7.4 V |
|---|---|
| Dimensions | 59.7 x 144.7 x 34.9 mm, 2.35 x 5.69 x 1.37 inch (with BP-314 and Antenna)
59.7 x 92.3 x 31.2 mm, 2.35 x 3.6 x 1.37 inch (with BP-314 and without Antenna) |
| Weight (approx.) | 220 g, 7.7 oz (with BP-314 and Antenna) |
| Operating Temperature | –10 °C to +60 °C; +14 °F to +140 °F |
| Charging Terminal | USB Type-C™ |
| Operating Time | BP-314: LTE 18 hours, Wi-Fi® 36 hours BP-315: LTE 26 hours, Wi-Fi® 58 hours |
| Charging Time | BP-314: 120 minutes (with BC-258) BP-315: 200 minutes (with BC-258) |
| AF Output Power (8 Ω at 5% distortion) |
1000 mW (Internal speaker) 250 mW (External speaker) 1000 mW (with HM-222HLS) |
| Bluetooth® Technology | Ver 5.3 |
| GPS | Built-in |
LTE
| NETWORK | (USA) LTE: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 (EXP/AUS) LTE: B1, B3, B7, B8, B20, B28, 3G (UMTS) LTE: 1B, 8B |
|---|---|
| Output power | +23 dBm typical |
Wi-Fi®
| Wi-Fi Standards | IEEE802.11 a/b/g/n/ac |
|---|---|
| Frequency | (USA) 2.4GHz(11ch): 1/2/3/4/5/6/7/8/9/10/11 ch 5GHz(25ch): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140/144/149/153/157/161/165 ch(EXP/AUS) 2.4GHz(13ch): 1/2/3/4/5/6/7/8/9/10/11/12/13 ch 5GHz(19ch): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140/149/153/157/161/165 ch |
| Output power | 10 mW/MHz |
| Security | WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-Personal, WPA3-Enterprise |
| Maximum Communication speed (Theoretical value) | 11/54/150/433 Mbps |
IP Rating
| Dust & Water | IP67 (Dust-tight and waterproof) |
|---|
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Supplied Accessories
- Antenna
- Beltclip (MBB-3)
- Strap
- Battery (BP-314)
- AC adapter (BC-258A)*
- USB cable (OPC-2480)
* for USA version only
