Icom IP504H LTE 2-Way Radio for North and Latin America

$640.00

  • Talk and roam across North and Latin America
  • Simultaneous TalkListen™ for full duplex communication
  • Multiple users can initiate calls. No requirements to check or wait for channel availability.
  • Group calls with three or more people Built-in Bluetooth® Voice message recording
  • Individual, Group, Talkgroup, Multiplex Talkgroup and All calls
  • Emergency button, Lone Worker and Man Down functions
  • Vibration alert function notifies of incoming call
  • Text message reception and preprogrammed message transmission
  • Up to 500 memory address book (including Group, Individual, Talkgroup and Telephone lists)

    Requires Activation for use

SKU: icom-ip504h Category: Tags: , , , , , , , , , , , , , Brand:

Description

IP504H

LTE Radio Across North and Latin America

Instant Communication Across North and Latin America,
Seamless Push-to-Talk Solution with LTE Technology

The IP504H utilizes LTE (4G) networks to provide instant push-to-talk communication with voice and data across North and Latin America. It combines the wide coverage and convenience of LTE technology with the reliable functionality of traditional two-way radios. Designed to operate on an Icom-controlled, private and secure server network, the IP504H offers a simple solution that eliminates the need for radio licensing. Additionally, the advanced RoIP gateway, VE-PG4 connects and integrates various new and legacy technologies to LTE solutions, making it a versatile choice for seamless communication.

Push-to-Talk Solution Across North and Latin America

The IP504H is an advanced LTE IP transceiver that enables instant communication through push-to-talk functionality, utilizing the reliable infrastructure of a mobile carrier network. Wherever you or your team are located *—simply press the PTT button to start a conversation.

The IP504H ensures your communication remains secure and of superior quality. By operating on a closed network system and using our custom SIM card, it ensures greater privacy and service reliability compared to open network systems.

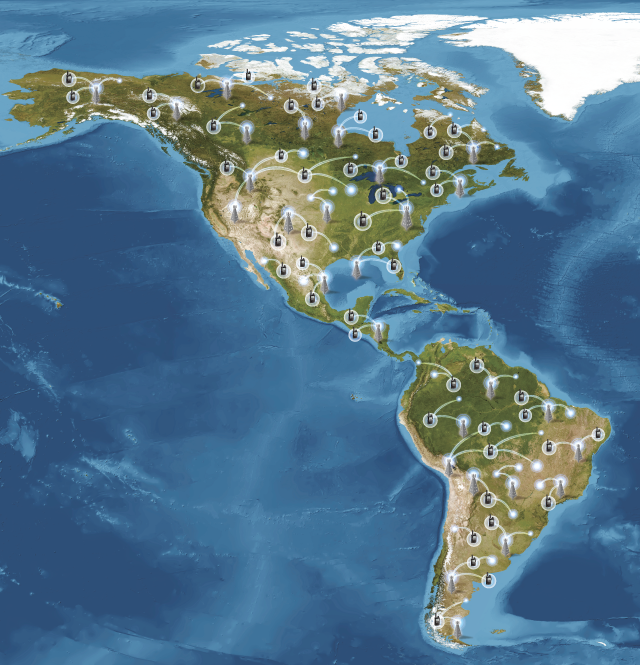

 Within the carrier’s coverage area. Network coverage is provided in USA, Canada, Mexico and select Latin America countries by a custom SIM card. Contact us for specific country coverage details

Simultaneous TalkListen Function for Full-Duplex Communication

The Simultaneous TalkListen allows seamless two-way communication, just like a phone call. Whether it’s a one-on-one conversation or a group call, you can talk and listen at the same time without worrying about transmission timing, unlike traditional transceivers.

Powerful and Clear Audio

The IP504H delivers 900 mW of loud, clear audio through its internal speaker—double the output of the previous model, IP501H. When paired with the optional speaker-microphone, HM-222HLS, it maintains robust volume levels, ensuring you will not miss a call, even in noisy environments.

Compact, Durable, and Long-Lasting Battery

Despite its compact design, the IP504H features an IP67-rated dust-tight and waterproof construction, capable of withstanding submersion in water for up to 30 minutes. It’s perfect for use around water, whether in kitchens or outdoor work environments, even in harsh weather conditions. The supplied Li-ion battery pack delivers over 15 hours of operation with a 5:5:90 duty cycle, ensuring reliable performance throughout your day.

Emergency Features to Enhance User Safety

The IP504H is equipped with an emergency button, Man Down, and Lone Worker functions, allowing it to automatically send an emergency call to a dispatcher or coworker in case of an incident. Additionally, the built-in GPS enables location tracking, always ensuring safety for users.

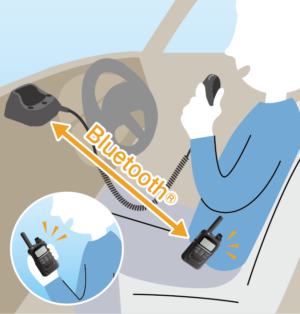

Bluetooth® Capability for Wireless Operation

When using the radio in a vehicle, you can operate it conveniently with a dash-mounted microphone*, even while keeping the IP504H clipped to your clothing or belt. Additionally, the optional VS-3 Bluetooth® headset allows for seamless wireless operation, providing flexibility and ease of use.

Other Features

  • Vibration alert function notifies of incoming call
  • Voice record and playback function
  • Text message reception and preprogrammed message transmission
  • Up to 500 memory addresses (including Group, Individual, Talkgroup and Telephone lists)
  • Dual SIM capability
  • Active noise cancelling function reduces background noise
  • Optional VE-SP1, portable speaker-phone for multi-site voice conference
Network 4G bands FD-LTE B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
Dimensions
(W × H × D; Projections not included)		 59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in
(with BP-272)
Weight (approx.) 250 g, 8.8 oz
(with BP-272 and antenna)
Power supply 7.4 V (with BP-272)
Voice Codec G.726 (32 kbps)
AF output power
(8 Ω at 10% distortion)		 Internal SP More than 900 mW
External SP More than 200 mW
More than 800 mW (with HM-222HLS)
Operating time*1 (5:5:90 duty cycle.) More than 15 hours (with BP-272)
More than 22 hours (with BP-307, option)
Bluetooth Ver 2.1 +EDR
GPS Built-in
Operating temperature –10 °C to +60 °C; +14 °F to +140 °F
Humidity Less than 25 ~ 85% (Without condensation)
IP rating IP67 (dust-tight and immersion)
IP55/54 (dust and water jet / water resistance)



*1 Operating time may differ depending on operating environments.
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • BP-272 Li-ion battery pack
  • MB-135 belt clip
  • Hand strap
  • Antenna

Additional information

Weight 2 lbs
Dimensions 10 × 10 × 5 in
