Description

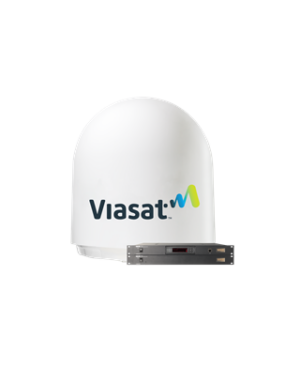

The SAILOR 600 Viasat Ka is an advanced superlight 3-axis stabilized Ka-band antenna system and user terminal that is designed for high-speed maritime broadband services on Viasat and Eutelsat Ka-band satellite networks.
Built upon a combination of the proven design of the superlight SAILOR 600 platform and the Viasat second generation broadband terminal, the SAILOR 600 Viasat Ka has created a new industry standard underpinned by ease- of-use, quick deployment ability, and reliable operation.
The SAILOR 600 Viasat Ka is constructed by Cobham SATCOM to the same high quality and high performance that has made SAILOR the industry benchmark for professional maritime communication equipment for more than 40 years.
Unprecedented ease-of-use
The SAILOR 600 Viasat Ka features a fully integrated Ka-band transmit/ receive assembly in the ADU, mounted directly behind the reflector – eliminating the need for cable calibration, and extending separation distance between antenna and below deck equipment.
This level of integration provides an unprecedented level of user friendliness for a maritime Ka band terminal. In addition, advanced features such as Automatic Azimuth Calibration significantly reduce installation time further.
Small and superlight
The SAILOR 600 Viasat Ka is
an advanced superlight 3-axis stabilized Ka-band antenna system and user terminal that is designed for high-speed maritime broadband services on Viasat and Eutelsat Ka-band satellite networks.
Enabling new levels of bandwidth at sea
The SAILOR 600 Viasat Ka delivers high-capability, reliable services across North America, Central America, the Caribbean, and Europe – leaving you to enjoy the power of broadband for business applications, vessel operations and crew welfare without fear of interruption.
Integrated management and support system
When you install a SAILOR 600 Viasat Ka, you gain access to industry-leading customer service. Cobham’s worldwide technical service centres provide hardware support. Service support is provided through the well-established Viasat and Eutelsat Ka network support.
VIASAT Sailor 600 Package Contains:
- 407060D-00500 SAILOR 600 Viasat Ka Maritime Ka-Band Antenna System.
- 407006D Above Deck Unit (ADU), incl. 65cm reflector, Viasat pTRIA,Mounting Accessories.
- 407016C Antenna Control Unit (ACU), AC Powered for 19″ rack mounting (1U).
- – AC Power cord.
- – NMEA Multi-plug.
- – Ethernet cable.
- 407024A SAILOR pTRIA Interface Unit for 19″ rack mounting (1U)
Dimensions:
Antenna (ADU) – Above decks
- 36″ H x 32″ D
- 82 lbs
Antenna Control Unit (ACU) – Below decks
- 1U 19″ Rack Mount
- 1.75″ H x 19″ W x 13″ Deep
- 10 lbs
pTRIA Interface Unit (PIU) – Below Decks
- 1U 19″ Rack Mount
- 1.75″ H x 19″ W x 13″ Deep
- 5.1 lbs
Power Consumption
- 100-240 VAC 50-60hz
- 110W Typical, 215W Peak
