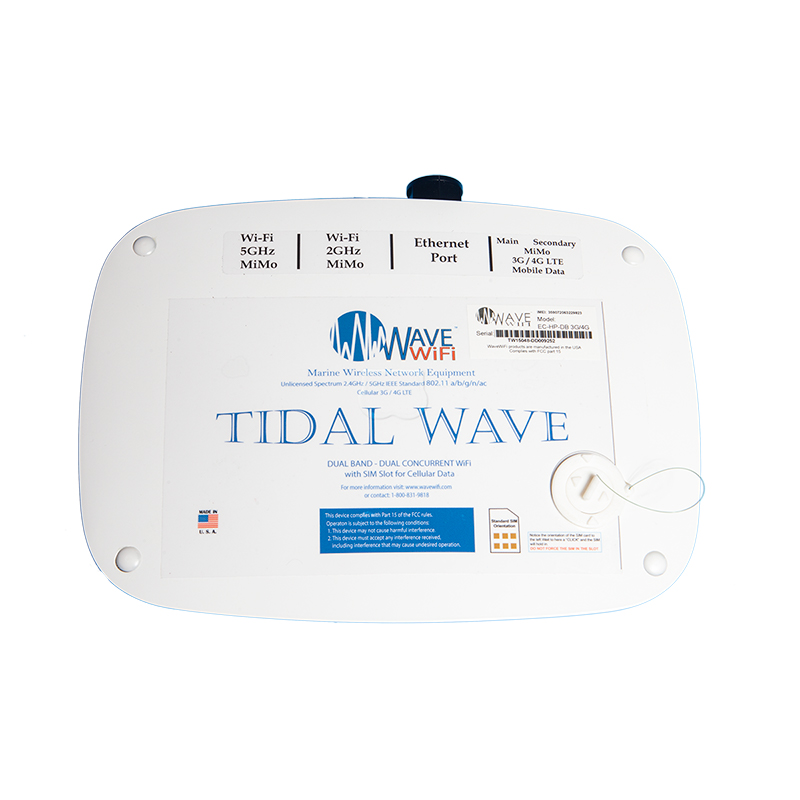

Wave WiFi TidalWave Dual-Band Wi-Fi and Cellular System

$2,966.00



TidalWave System, provides High Powered Dual Band WiFi + 3G/4G and allows for concurrent listening across 2.4 and 5.1-5.8 GHZ WiFi channels along with SIM Activated cellular data. Includes high-gain exterior marina antennas for Wi-Fi and Cellular.

Tidal Wave Features include:

  • Supports 802.11 a/b/g/n/ac 2.4GHz / 5GHz (5.1-5.8) Wi-Fi frequencies
  • Supports SIM Activated Cell Data Bands
  • One Gigabit 10/100/1000 Mbit/s Fast Ethernet Port
  • Uses MiMo on all supported frequencies
  • (2) 2’ Outdoor High Gain Omnidirectional Dual Band antennas
  • (2) Indoor rubber duck Dual Band antennas
  • (2) 25’ Ultra Flex Low Loss 400 antenna cables
  • One Rubber Duck Cellular Antenna
  • One High Gain Outdoor Cellular Antenna with cable
  • Two Year Limited Warranty

Wave WiFi Yacht AP DB Dual-Band Below-Decks Wi-Fi Access Point

Features include: Dual-Chain 850mbps - supports 802.11 b/g/n/a/ac (2.4 GHz and 5Ghz), MIMO, WPA2 Encryption Compact Design 24 VDC PoE injector One year limited warranty

SKU: WW-TIDALWAVE Categories: , , , Tags: , , , , , , , , , , , , , , ,

Description

TidalWave Dual-Band + Cellular

Surf’s Up! Wave WiFi’s New High Powered Dual-Band 3G/4G model boasts concurrent listening on three different frequency bands at the same time; 2.4Ghz + 5.1 – 5.8Ghz WiFi and SIM Cell Data. Our Tidal Wave has a one gigabit Ethernet port and isn’t afraid to use it. This model provides further connection ranges than any other Wave WiFi device. All Wave WiFi models ship with our feature rich customer inspired browser-based user interface, and come with all accessories necessary to get you up and running. The Tidal Wave model supports all encryption types, along with SIM cell data bands on the cellular side. There is no software to install which means better plug and play performance for computer accessories. Enjoy the Luxury of WiFi & Cell on the Water.

Features:

  • Supports 2.4GHz / 5GHz (5.1-5.8) Wi-Fi frequencies
  • Supports SIM Activated Cell Data Bands
  • One Gigabit 10/100/1000 Mbit/s Fast Ethernet Port
  • Uses MiMo on all supported frequencies

Includes:

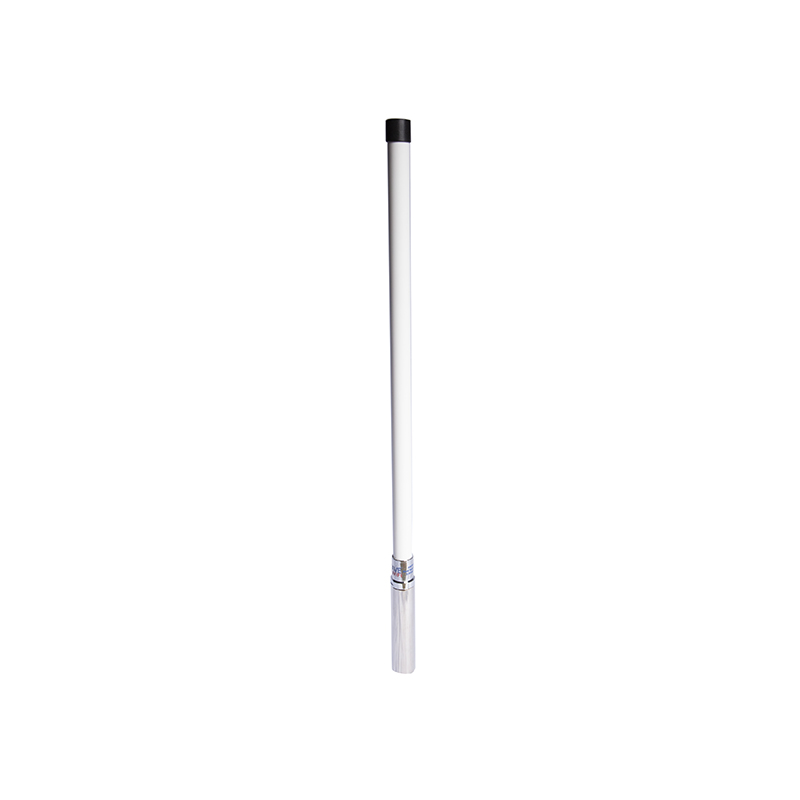

  • (2) 3’ Outdoor High Gain Omnidirectional Dual Band antennas
  • (2) Indoor rubber duck Dual Band antennas f/WiFi
  • (2) 25’ Ultra Flex Low Loss 400 antenna cables
  • (1) Cable Kit – 25′ Cat5
  • (1) Small rubber duck cellular antenna
  • (1) High Gain External Outdoor Cellular Antenna with cable
  • (1) 30′ Cellular Cable

Additional information

Weight 17 lbs
Dimensions 24 × 17 × 6 in
Brand

Wave WiFi

Wave WiFi Technology

wave wifi long range wifi cellular router for boats rvs and yachts
Each component of all Wave WiFi’s products is designed and engineered for the marine environment. All Wave WiFi products support 802.11 b/g/n thereby exhibiting high receive sensitivity and transmitter output power meaning Internet connections are possible up to several miles from a high powered, access point (HotSpot).

Wave WiFi products offer outstanding performance because of the proprietary firmware technology embedded in each unit. The web-based firmware permits the computer user to scan for public access points (HotSpots) and provides a detailed diagnosis of each HotSpot’s relative signal strength. The user can select a HotSpot that will provide Internet connectivity and connect to that access point.

This same technology allows the user to access WEP, WPA and WPA2 encrypted access points. A graphical interface allows the user to see the signal-to-noise ratio in real-time. For the first-time user, a built-in ‘Help’ system is readily available by simply holding your mouse over the appropriate question mark.

The Wave WiFi EC-Series products are Ethernet Converters (EC) allowing the Wave WiFi unit to be directly connected to all Ethernet enabled devices resulting in flawless performance as a standalone system or integrated into the vessel’s network. Because Wave WiFi’s proprietary firmware technology is built-in, there is no software to install, no USB restrictions and no power-robbing USB connections.

Now Wave WiFi’s EC-AP-ER and EC-AP-HP feature ‘MIMO’ (Multiple Input/Multiple Output) technology for the built-in access point (AP). The AP provides a powerful 500mW b/g/n MIMO wireless signal. This means multiple computers and wireless devices throughout the vessel have excellent wireless connectivity.

What is MIMO?

Multiple-Input and Multiple-Output (MIMO) technology uses Multi-path (when wireless signals ‘bounce’ off of objects and arrive at the receiver at different times) to improve wireless performance.

MIMO technology takes a single data stream and breaks it down into several separate data streams and sends it out over multiple antennas. This provides redundancy and results in:

  • Increased data throughput and range by utilizing multiple antennas
  • Improved link reliability and less fading than a single antenna system
  • Multiple data streams provide alternatives for line-of-sight issues
  • By transmitting multiple data streams at the same time, wireless capacity is increased

Today’s Wave WiFi products represent the on-going evolution of mobile WiFi and provide greatly enhanced performance and functionality for today’s WiFi dependent society.
