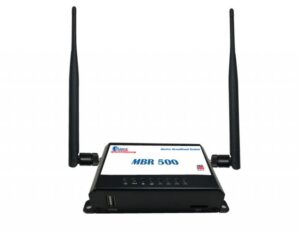

WaveWiFi MBR-500 MultiWAN Wi-Fi Router with Bundled Wi-Fi Extender

From: $896.00

MBR-500 features include:

  • Built-In 300mbps WiFi Access Point with 2 x Antennas (MIMO)
  • 5 x 10/100mbps Configurable LAN or WAN/Internet ports
  • Automatic or Manual WAN Port Selection and Failover
  • Device/MAC Address filtering per-WAN port
  • URL Blacklist filtering
  • Data usage monitoring
  • Captive Portal with user login codes and guest access
  • Configurable data-limits per WAN-port, per-user, and per-device
  • Centrally manage your MBR-500 Router, Cellular data connection, Additional WaveWiFi YachtAP Access Points, and Rogue Wi-Fi Extender from a single GUI.

Want a cellular enabled router? Upgrade to the Cellular Data enabled MBR-550 which adds

  • Built-In Global LTE Cellular and unlocked global SIM slot
  • Dual MIMO Cellular Antennas

WaveWiFi Rogue PRO Dual-Band Wi-Fi Extender

Rogue Pro DB Features include:
Supports 802.11 b/g/n (2.4Ghz AND 5Ghz)
Includes Dual Band 2.4 and 5GHz 8.5db outdoor antenna
Easy to use proprietary web-based Wave WiFi Interface
Compact, ultra-small, stainless steel design
Marinized Stainless Steel body extends the life of the unit on the water
120/220 VAC or 12VDC with included Wall & Cigarette Lighter adapters
Passive PoE injector
25’ Ethernet cable included - Longer Cables Available
One year limited warranty

WaveWiFi Rogue Reach Dual-Band Wi-Fi Extender

Rogue Reach Features include:
Completely enclosed for total weather protection and endless installation options
120/220 VAC or 12VDC with included Wall & Cigarette Lighter adapters
Passive PoE injector
25’ CAT5e cable Affixed to the unit (longer cable lengths available)
1” – 14 Threaded base for easy installation (mount not included)*
Size: 26in. H x 1.5in. W
Frequency: 2.4GHz and 5Ghz
One Year Limited Warranty

Outdoor UV Stable 50ft Cable for Rogue Wi-Fi Antennas

Outdoor UV Stable Cat6 Ethernet Cable - 50ft

Outdoor UV Stable 100ft Cable for Rogue Wi-Fi Antennas

Outdoor UV Stable Cat6 Ethernet Cable - 100ft

Shakespeare 4365 4 Inch Straight Mount

4" High Stainless Steel construction
Standard 1" - 14 male threads
Excellent for Marine TV antennas
May be used with Style 4364 Extension Mast (1')

Shakespeare 4188SL Stainless Steel Ratchet Rail Mount

Ratchet Action Rail Mount Antenna Mount 4188SL
Four-way ratchet design with handle
For rail mounting
Has 9/32" or 15/32" hole for feed through cable
Standard 1"-14 thread male threads

Shakespeare 5187 Stainless Steel Ratchet Mount - nutless

Shakespeare Stainless Steel Ratchet Mount 5187 - nutless
Five degree teeth for finer adjustments than standard rachet mounts
Quick Action release handle
Bolt holes: 5/16in dia,, 3in x 11/2in on center
Standard 1in-14 thread.(male)

In Stock, Ready to Ship


Wave WiFi’s line of Mobile Broadband Routers are cost-effective broadband source selectors suitable for offshore cruising boats, sport fisherman, or megayachts. The MBR-500 can handle up to four input sources such as WaveWiFi’s own Rogue Pro DB and your Fleet One, Iridium Pilot, Certus, Fleet Broadband, HughesNet, or mini-VSAT system. The MBR-550 model also handles up to four input sources PLUS an integrated global band LTE cellular modem for connecting to the Internet. Both models also include a built-in 300mbps WiFi access point and at least one ethernet LAN port.  Use the MBR-550 cellular model with an additional external cellular antenna, or in conjunction with a cellular booster, to bring cellular Internet to the boat while underway miles offshore.

All of the WaveWiFi Mobile Broadband Routers manage connections with an ‘Auto-Failover’ mode or manually through a simple click in the web UI. Set a preferred connection in the simple setup menu such as your WaveWiFi Rogue unit, the cellular connection or satellite. If that connection loses Internet access, the Broadband Router seamlessly connects you to the next available, prioritized source.  You can also set maximum data usage for a particular user, computer, or Internet connection per day, month, etc and the router will block access or automatically switch to an alternate Internet connection that hasn’t used it’s data allotment.

The Mobile Broadband Router is the central control element for a robust Internet communications system. It is easy to use, with no special skills necessary. Like all WaveWiFi products, the Broadband Router’s web-based functionality is built in; there is no software to install.

Connections are managed through WaveWiFi’s web-based interface. The intuitive interface shows at a glance which broadband sources are active. A simple mouse click allows switching between active sources.

Advanced features include WaveWiFi’s Access Management Control which is invaluable for metered sources, such as satellite and cellular. This means you can create a customizable login page (Captive Portal), generate individual ‘user login codes’ for guests and crew, monitor and control per user bandwidth as well as configure port forwarding.

These models are also capable of supporting ‘Guest Networks’. This means that any devices connected to the Guest Network will not have access to the MBR 500 or 550’s manage page. They will only be able to use the data provided by the MBR series router and not be able to manipulate it.

Download WaveWiFi MBR-500/550 Brochure
Download WaveWiFi MBR-500/550 Quick Start Guide

Manually or Automatically select between shore-based WiFi, cellular, satellite, and other Internet sources, and check your current connection status at a glance!

See who is connected and whether they are allowed access to the Internet in real-time

Control how each device on your network can access the Internet

Easily Access the attached Rogue Wave, Reach, or Pro WiFi Extender to scan for and connect to shore-based WiFi networks, and watch your MBR router automatically switch to Shore WiFi when it detects Internet, reducing your cellular and satellite data usage.

Additional information

Weight 2 lbs
Dimensions 10 × 8 × 3 in

WaveWiFi Rogue PRO Dual-Band Wi-Fi Extender

Weight 3 lbs

Rogue Pro DB 2.4/5.8Ghz

Option 2


WaveWiFi Rogue Reach Dual-Band Wi-Fi Extender

Weight 3 lbs

Rogue Reach DB 2.4/5.8Ghz

Outdoor UV Stable 50ft Cable for Rogue Wi-Fi Antennas

Weight 1 lbs


Outdoor UV Stable 100ft Cable for Rogue Wi-Fi Antennas

Weight 1 lbs


Shakespeare 4365 4 Inch Straight Mount

Weight 0.7000 lbs

Shakespeare 4188SL Stainless Steel Ratchet Rail Mount

Weight 2.9000 lbs

Shakespeare 5187 Stainless Steel Ratchet Mount - nutless

Weight 2.6000 lbs

Wave WiFi Technology

wave wifi long range wifi cellular router for boats rvs and yachts
Each component of all Wave WiFi’s products is designed and engineered for the marine environment. All Wave WiFi products support 802.11 b/g/n thereby exhibiting high receive sensitivity and transmitter output power meaning Internet connections are possible up to several miles from a high powered, access point (HotSpot).

Wave WiFi products offer outstanding performance because of the proprietary firmware technology embedded in each unit. The web-based firmware permits the computer user to scan for public access points (HotSpots) and provides a detailed diagnosis of each HotSpot’s relative signal strength. The user can select a HotSpot that will provide Internet connectivity and connect to that access point.

This same technology allows the user to access WEP, WPA and WPA2 encrypted access points. A graphical interface allows the user to see the signal-to-noise ratio in real-time. For the first-time user, a built-in ‘Help’ system is readily available by simply holding your mouse over the appropriate question mark.

The Wave WiFi EC-Series products are Ethernet Converters (EC) allowing the Wave WiFi unit to be directly connected to all Ethernet enabled devices resulting in flawless performance as a standalone system or integrated into the vessel’s network. Because Wave WiFi’s proprietary firmware technology is built-in, there is no software to install, no USB restrictions and no power-robbing USB connections.

Now Wave WiFi’s EC-AP-ER and EC-AP-HP feature ‘MIMO’ (Multiple Input/Multiple Output) technology for the built-in access point (AP). The AP provides a powerful 500mW b/g/n MIMO wireless signal. This means multiple computers and wireless devices throughout the vessel have excellent wireless connectivity.

What is MIMO?

Multiple-Input and Multiple-Output (MIMO) technology uses Multi-path (when wireless signals ‘bounce’ off of objects and arrive at the receiver at different times) to improve wireless performance.

MIMO technology takes a single data stream and breaks it down into several separate data streams and sends it out over multiple antennas. This provides redundancy and results in:

  • Increased data throughput and range by utilizing multiple antennas
  • Improved link reliability and less fading than a single antenna system
  • Multiple data streams provide alternatives for line-of-sight issues
  • By transmitting multiple data streams at the same time, wireless capacity is increased

Today’s Wave WiFi products represent the on-going evolution of mobile WiFi and provide greatly enhanced performance and functionality for today’s WiFi dependent society.
