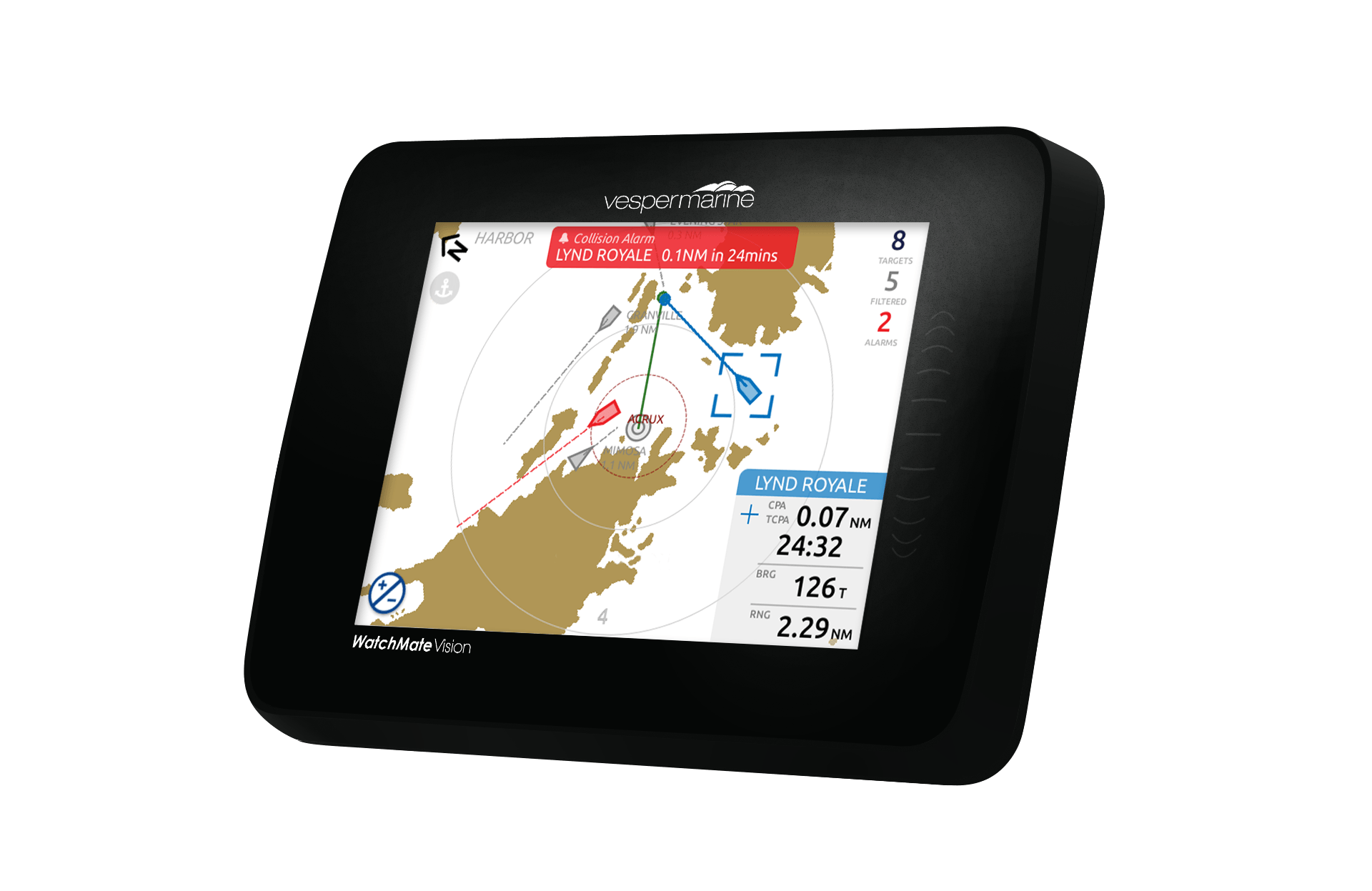

Vesper Vision2 Touchscreen AIS Transponder Kit

(Discontinued by Manufacturer) See Vesper Cortex for replacement

WatchMate Vision2, a large 5.7 inch, bright color touchscreen transponder is a fully standalone transponder loaded with smartAIS features.


Complete Class B AIS Transponder

WatchMate Vision2 is a Class B AIS transponder with a two channel parallel receiver and transmitter. It transmits your vessel position and details and receives the same kind of information from other vessels with AIS transponders.

The AIS data is sent every few seconds and includes information such as course, speed, latitude, longitude, and heading. Static information about the vessel is sent every few minutes and includes the name, type of vessel, length, beam, draft, etc.

smartAIS features

Unlike normal AIS which send and receive AIS data, WatchMate Vision2 has smartAIS which is an active safety system with smart alarm logic that alerts you rapidly to potential dangers.

smartAIS includes these three powerful features:

  • Safety Underway. This alerts you when smartAIS detects a potential collision.
  • Safety at Anchor. If your anchor drags, smartAIS will let you know immediately.
  • Safety for your Crew. If someone is thrown overboard, smartAIS not only alerts you, it also provides their location so you can pick them up quickly.

It means you can focus on sailing your vessel, knowing smartAIS is always keeping watch in the background and is ready to alert you the moment it detects a hazard or unwanted event.

Safety Underway – Collision Avoidance

WatchMate Vision2 proactively alerts you when you have potential collision situations.

It combines GPS data such as position, course and speed along with AIS data and smart alert logic to continually determine safety implications and alert you. It computes the closest point of approach and time until the closest point of approach and triggers alarms to warn you of vessels posing a threat. A smart alarm banner displays at the top of the screen with details of the highest priority alarm. Touching the banner is all that is required to take you directly to the source of the alarm including automatically zooming the display range, selecting the target, graphically showing the crossing situation and bringing up full vessel details.

CPA Alarm

smartAIS computes the closest point of approach and time until CPA. A CPA alarm is triggered if a vessel will come too close in terms of CPA and the alarm is prioritised by TCPA.

Alarm Prioritization

Alarms are presented in priority order of collision risk.

Bearing and Range

Computes the bearing and range to each vessel. Bearing can be displayed in magnetic to facilitate easy visual identification using your compass and binoculars. Bearings can alternatively be displayed in true degrees.

Identify Your “Fleet”

Targets marked as members of your fleet are displayed with a special icon. Use this to indicate your friends or vessels you commonly work with.

Guard Alarm

Sounds alarm if any vessel comes within the specified range. Both CPA alarms and guard alarms may be used together.

Intelligent Filtering

In crowded operating areas the WatchMate Vision2 eliminates clutter and false alarms with sophisticated filtering options. Filters can be set based on vessel range, speed, closest point of approach, and time. Filtered vessels fade out and change color when they don’t create a collision threat. This means low threat vessels still remain visible without causing screen clutter or creating a distraction. It’s easy to switch filters on and off any time and immediately see the low risk vessels fade in and out.

Alarm Profiles.

Choose from multiple profiles according to the current situation (Offshore, Coastal, Harbor or Anchored) and the profile defines the distance notifications for alarms.

Safety at Anchor – Anchor Watch

Every sailor knows that being at anchor is no guarantee of total safety. In particular, anchors can drag without those on board being aware. Thanks to Anchor Watch, however, you can be safer and sleep well at night. That’s because Anchor Watch sounds the alarm if you drift outside a zone defined around your anchor position. Activate the anchor watch when you drop the anchor touching the Vision2 screen or using a mobile device to activate it remotely from the windlass or anywhere on-board.

Wind speed, wind direction change or minimum water depth alarms

Get added safety at anchor by setting wind speed, wind direction change and minimum water depth alarms and take quick precautionary action when these alarms are triggered.

Move Anchor Position

If your Anchor position needs fine-tuning after you have marked it, you can do that with the Move Anchor Position.


Vision2 plots your position in relation to the anchor and marks your positions over time for easy visual identification if you are dragging.

Safety for your Crew: Man Overboard (MOB) alarm

WatchMate Vision’s Man Overboard (MOB) alarm sounds the alarm the instant somebody goes over the side and activates his AIS MOB device. The Alarm clearly identifies the MOB on the display and gives you the location, bearing and range of the person for quick retrieval. It also provides continuous updates of position, bearing and range.

MOB labelling

Equip crew members with any manufacturer’s AIS MOB device, and you can associate the devices to the names of the crew members. When the alarm is triggered, it displays the name of your crew member which is quicker and easier to recognize rather than a string of MMSI numbers.

WiFi connectivity anywhere on board

WatchMate Vision2 has built-in Wi-Fi. You can securely connect up to 8 other devices simultaneously over WiFi. You can have a wireless connection to your laptop, smartphone, tablet and smartwatch

AIS data, GPS and Navigation instrument data over WiFi

Besides AIS data, GPS and NMEA instrument data can be shared with all your mobile devices and laptops. This is exclusive to Vesper Marine Smart AIS transponders. Manage your vessel’s navigation, set and monitor alarms or take decisive action from anywhere on-board using your mobile device.

Connect Wirelessly to Other Devices Using latest high speed WiFi 802.11 b/g/n

WatchMate Vision2 provides dual WiFi configuration as either a secure Access Point supporting up to eight other devices simultaneously or connected to an existing router providing WiFi expansion capability to unlimited devices.

Certified NMEA 2000 Gateway

Translates NMEA 2000 instrument data (heading, wind, depth, speed, log, temperature) and routes it to mobile devices, computers and plotters.

Over WiFi, USB

All NMEA 2000 navigation data is combined with GPS and AIS data and sent simultaneously to up to eight WiFi devices (tablets, smart phones, smartwatches computers) as well as computers via USB. Display and use this data in your navigation applications such as NavPlay, iNavX or SEAiq on an iPad. Or use it on Android and iOS apps or Windows and Mac navigation software.

To NMEA 0183 instruments

Integrate chart plotters, MFDs and radars using NMEA 0183 to your NMEA2000 navigation network using WatchMate Vision2.

High resolution GPS

WatchMate Vision2 is equipped with a fast 5Hz 50 channel GPS. This provides greater detail and higher resolution plotting. Displays GPS satellite status and navigation data such as your position, course and speed when viewed from the My Vessel screen.

GPS source for navigation network

Use it as a source of GPS data on a NMEA 2000 network which means you do not need an additional GPS antenna. View GPS data on your plotter or MFD, with higher resolution and smoother tracks even during high speed maneuvers.

Integrated GPS Antenna

Includes a built-in GPS antenna that allows for simple installation. For best performance, the built-in GPS antenna requires a clear and unobstructed view of the sky. It usually works well when installed in a cockpit, under a non-metallic dodger or under a fiberglass hard-top.

External GPS Antenna (Optional)

If you are mounting the WatchMate Vision2 in a location which does not provide adequate GPS signal coverage (eg. near or obstructed by metal objects or “down below” at a nav station), we recommend using our (optional) external GPS antenna. An external GPS antenna connection is provided with the WatchMate Vision2.

WatchMate App

Monitor your WatchMate Vision2 on a tablet or smartphone using the free Vesper Marine WatchMate App. Monitor AIS-equipped vessels can be viewed on an easy to use radar plotting screen, vew and update your vessel information, view navigation information and GPS status from anywhere on board. Be alerted of potential risk situations to take decisive action. You can also remotely control alerts, alarms and transponder settings.

Instant Target Acquisition

The WatchMate App is the only mobile app with instant identification of other vessels. All other apps and MFDs take time for AIS targets to appear, but the WatchMate app takes advantage of unique capabilities of your WatchMate Vision2, so it displays all received vessel information the instant you start the app.

Alarm Setting

Activate the Anchor Watch on your WatchMate Vision2 from anywhere on your boat. Monitor your position relative to the anchor location on your Apple or Android phone or tablet and receive alarms wherever you are on board.

Third-party apps

The WatchMate Vision2 is supported by a growing set of third-party mobile apps and we often post reviews of iOS and Android apps for compatibility and features. Interact with applications such as iSailor, iNavX, SEAiq, MemoryMap and iRegatta on iOS, iSailor, droidAIS, Sailtracker, MemoryMap and iRegatta on Android smartphones and tablets or your favorite navigation software on your computer (Windows or Mac).

Watch the video here that takes you through the steps to enable AIS information to be displayed on iNavX for iPad.


Firmware Updates

When you buy a WatchMate Vision2, you get not just a product, but an extendable AIS platform.

WatchMate Vision2 has an upgradeable AIS platform, designed to be compatible with a continuous stream of feature updates. You can automatically update your WatchMate Vision2 with the latest firmware using your smartphone or tablet and the WatchMate App. Or online at

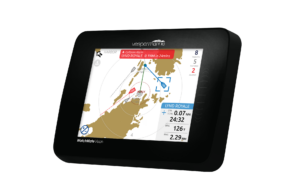

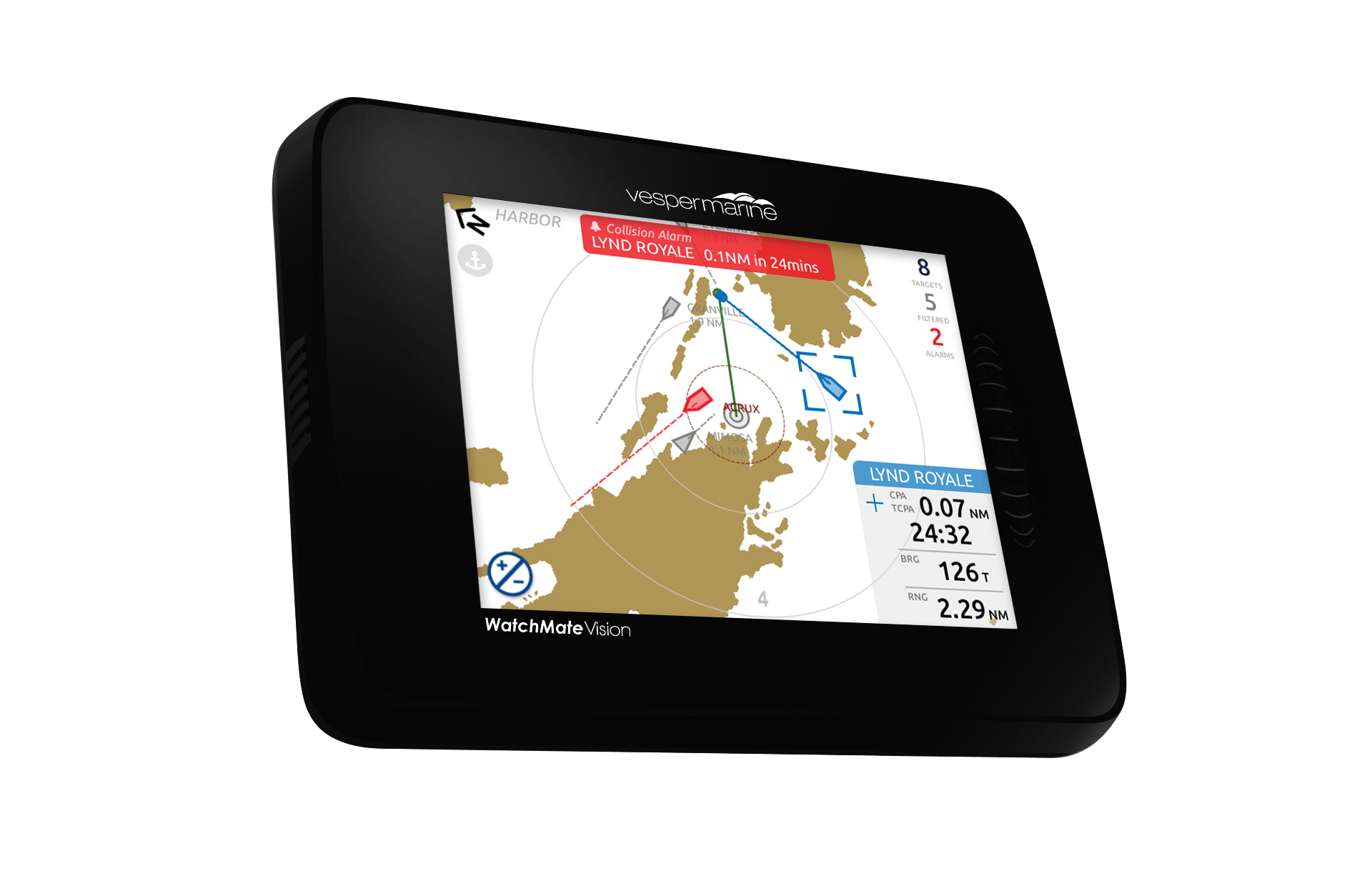

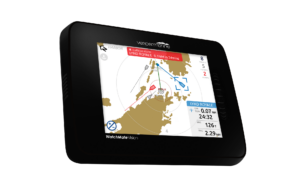

Color Touchscreen

The 145mm (5.7”) color capacitive touchscreen offers a new experience in AIS information display and management. Scroll through the menu, zoom in and out, see vessel details and navigation data, change alarm settings and more with the most gentle of touches.

Plotter Screen Magnifier

WatchMate Vision’s unique magnifier appears on the AIS Plotter Screen when needed allowing you to select targets without losing position context and scale.

Worldwide Built-In Coastal Outlines

Coastal outlines enable high level situational awareness and assist your understanding of your location in relation to major land areas.

This feature should not be used as a replacement for accurate navigational charts.

Automated DSC calling

You can connect any VHF radio and WatchMate Vision2 will provide your GPS position to the radio for its emergency DSC function. You can also connect a compatible VHF using NMEA-0183 and place DSC calls directly to individual vessels by touching them on the screen. There’s no need to punch a string of MMSI digits into your radio.

Automated DSC calling is compatible with all current generation Icom fixed-mount radios. Other radios do not currently have support for Vision’s automated DSC calling, but all VHF radios accept Vision2-supplied GPS positions.

Safety Messages

Displays received AIS Broadcast Safety Messages. These messages may contain important safety, navigation, weather, or shipping information.

Some of the innovative features of WatchMate Vision2 include:

  • Vesper Marine’s new multiprocessor architecture for fast performance and includes dedicated AIS processors ensuring reliable, instant AIS data acquisition.
  • Easy installation: Just plug in a VHF antenna and connect to 12-24 VDC.
  • WatchMate Vision’s low power consumption that keeps it always on, always visible, always watching.
  • The WatchMate Vision2 is water proof (IPx7) so it can safely be mounted mostly anywhere. Unlike many touchscreen devices, you can even operate it with wet hands.
  • Galvanically isolated USB port ensures the transponder and any connected equipment (e.g. laptops) are always protected against damage and can be used at any time.

Additional information

Weight 2.5000 lbs
Dimensions 5.0000 × 8.0000 × 10.0000 in


AIS Programming

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click to download AIS programming form.

Need to Apply For an MMSI?

If you do not yet have your FCC Ship Station License and need to apply for one, go to FCC Universal Licensing ( login or register and apply for an Ship Station License (SA).  Follow the prompts and pay the fee.  FCC will send you a license electronically which you can submit with your completed programming form.

Can’t Find Your Ships Station License?

If you have an MMSI from the FCC but can’t find a copy of the FCC SA License itself, you can request a copy from the FCC by logging in to the Universal Licensing System and navigating to “Download Electronic Authorizations” from the menu on the left side.

Email a copy of the FCC Ships Station License and the Completed and Signed Programming Form to [email protected] to complete the programming.



  • Size: 172mm wide x 130mm high x 60mm depth (6 7/8” x 5 1/8” x 2 3/8”)
  • LCD Touch Panel: 145mm (5 11/16”) VGA color TFT capacitive touch
  • Power Supply: 10-32 VDC 2A max, 6W nominal
  • Environmental: Waterproof (IPx7)
  • Operating Temperature: -25°C to +55°C (-13°F to 131°F)
  • Storage Temperature: -25°C to +80°C (-13°F to 176°F)
  • Number of Receivers: 2 AIS, 1 DSC (timeshared)
  • Number of Transmitters: 1 AIS
  • Receive Frequency Range: 156.025 – 162.025 MHz
  • Transmit Frequency Range: 161.500 – 162.025 MHz
  • AIS Sensitivity: -113 dBm < 20% PER
  • Power Output: 33 dBm (2W)
  • GPS Sensitivity: -159dBm tracking & navigation -142dBm acquisition
  • GPS Differential Support: SBAS: WAAS, EGNOS, MSAS, GAGAN
  • GPS Navigation Rate: Selectable 1Hz or 5Hz with magnetic variation included in output

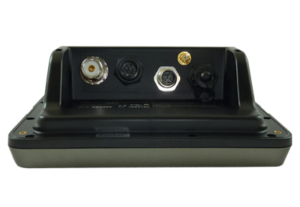

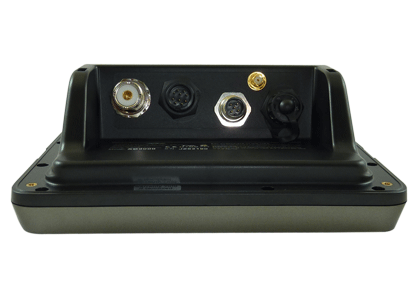

  • Serial Data: 1 USB port (isolated), 1 NMEA input (isolated RS422), 1 NMEA output (RS422)
  • NMEA 2000 Gateway: Converts selected instrument PGN’s to and from 0183, WiFi and USB
  • USB Connector: Mini USB (USB 2.0)
  • NMEA 2000 Connector: NMEA 2000 Micro-C male. Requires female drop cable (not included)
  • Wireless: 802.11 b/g/n in Access Point or Client Mode, 10 dBm
  • Access Point Security: WPA2 Personal
  • Client Mode Security: None, WPA & WPA2 Personal
