Sea-Tech Marine Cellular Booster Kit

$999.00

  • Boosts voice, text & 4G/5G LTE signals for all North American cell carriers
  • Reduces dropped and missed calls inside any car, truck or SUV
  • Increases signal strength & extends battery life for multiple users on all cellular devices
  • Improves 4G/5G LTE data speeds and connectivity for more miles of uninterrupted coverage
  • No cradle or docking station required
  • Sets up in minutes, simple plug-and-play install

Straight Pipe Mount, and clamp pipe/rail Mount for Exterior Antenna Included

Confused about which options to choose?  Here are our recommendations:

  • Sailing Monohull: Bulkhead Mount Interior Antenna, Long enough cable to mount exterior antenna at the top of the mast.  Add a Shakespeare mast mount to make attaching at the top of the mast easier.
  • Sailing Catamaran: Ceiling Mount interior antenna in the Salon to cover the most area of the boat. Long enough cable to mount exterior antenna at the top of the mast.  Add a Shakespeare mast mount to make attaching at the top of the mast easier.
  • Power Catamaran: Ceiling Mount interior antenna in the Salon to cover the most area of the interior. Long enough cable to mount exterior antenna on the flybridge roof or radar mast.  Standard Pipe mount is probably the most common here.
  • Power Yacht: Bulkhead Mount interior antenna in the Salon area to cover the Salon.  Covering the rest of a small yacht may be possible with a ceiing mount.  Long enough cable to mount exterior antenna on the flybridge roof or radar mast.  Standard Pipe mount is probably the most common here. For larger yachts you may want to use multiple interior antennas–contact us for options.

Additional Mounting Options

Add a Shakespeare Stainless Steel Mast mount arm. This allows you to mount the exterior antenna about 15″ out from the masthead to keep clear of other antennas and equipment on the top of the mast.

Description

Sea-Tech has assembled this complete 5-band cellular booster kit for the cruising boat!  The kit includes the latest cellular amplifier from SureCall, plus the best antennas for boat use, appropriate cables, and any necessary antenna connecting adapters where needed.  Extend your cell phone’s range from shore by 30% or more.

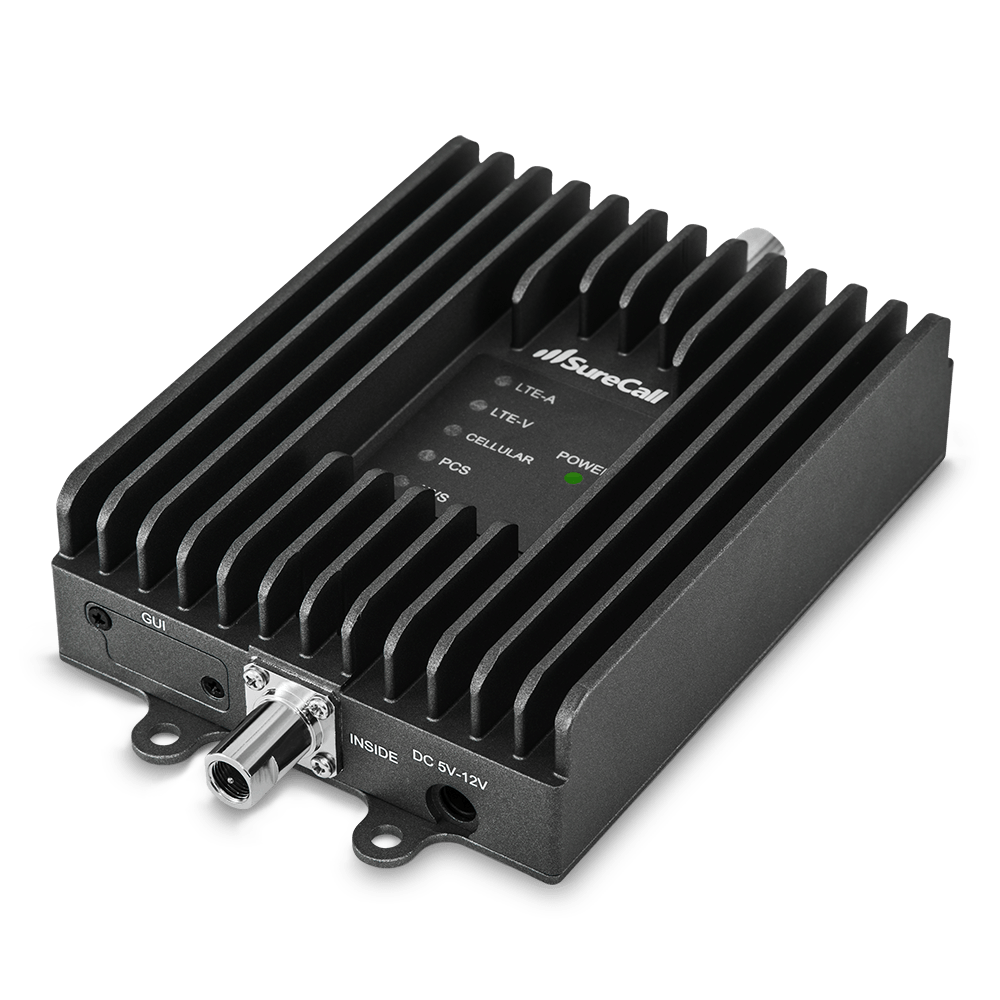

The Fusion2Go 3.0 features 2XP technology to maximize vehicle-to-cell tower range by increasing the uplink transmission power two-fold. This enables users to remain connected throughout the weakest cell signal environments.  Independent lab testing by CKC Labs concluded that the Fusion2Go 3.0 proves 2X more power and fastest data speeds when compared to the closest competitor. This means that the Fusion2Go 3.0 works further into the fringe of the network than any other vehicle signal booster available on the market today.

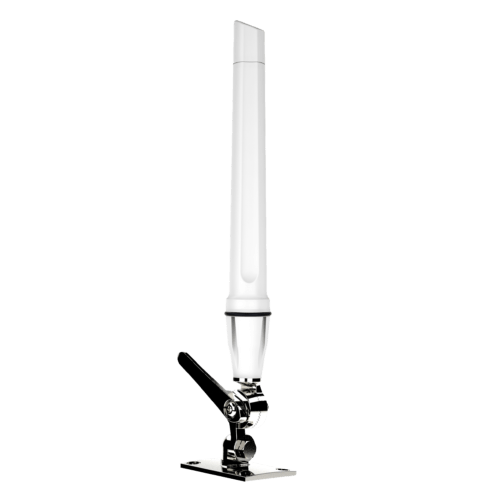

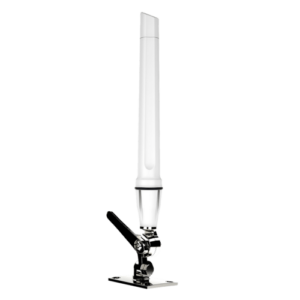

Stay connected anywhere with the included Poynting OMNI 400 marine exterior antenna equipped with 1″-14 threaded adapter for standard marine antenna mounts AND an L-bracket kit to suite any mounting requirement. The OMNI 400 antenna provides up to 7.5db gain for cellular bands increasing total signal strength and compensating for long cable runs when installation requirements dictate.   The Fusion2Go 3.0 booster works with all North American cellular carriers, including AT&T, Verizon, Sprint, T-Mobile, to improve your voice, text, and 4G/5G LTE signals in remote locations and areas with poor cellular reception.

SeaTech Marine Cellular Booster Kit Features:

  • Boosts voice, text & 4G/5G LTE signals for all North American cell carriers
  • Reduces dropped and missed calls inside any car, truck or SUV
  • Increases signal strength & extends battery life for multiple users on all cellular devices
  • Improves 4G and 5G LTE data speeds and connectivity for more miles of uninterrupted coverage
  • No cradle or docking station required
  • Sets up in minutes, simple plug-and-play install

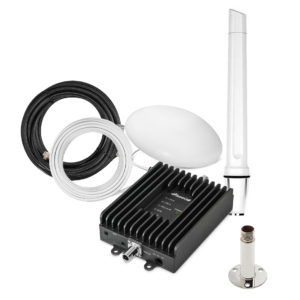

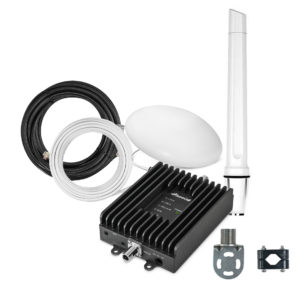

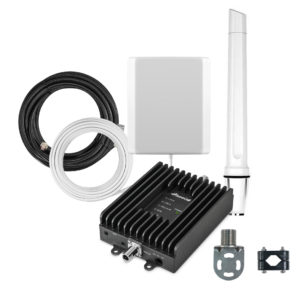

The SeaTech Marine Cellular Booster Kit comes with the following:

  • Included: SureCall Fusion 5-band Cellular amplifier for North America (Including Central America and most of Caribbean)

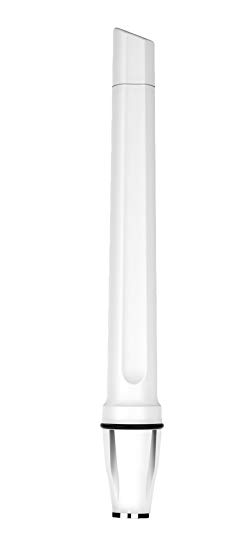

  • Included: Poynting Tech High Gain Omni 400 Antenna

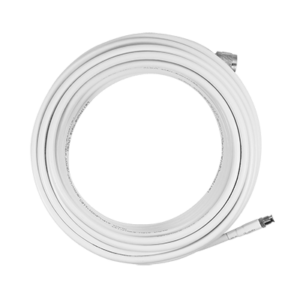

  • Included: 75ft of low-loss LMR-400 cable for external antenna
  • Included: Additional Cable Connectors for LMR-400 to shorten cable when needed

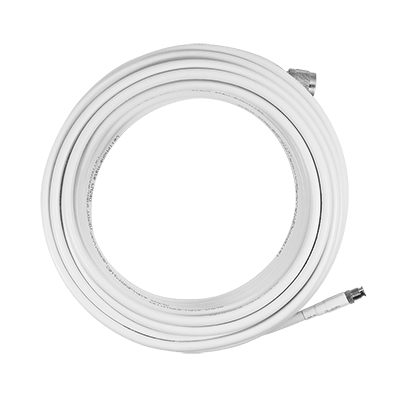

  • Included: 10ft of low-loss LMR-240 cable for interior antenna
  • Included: 1″-14TPI Threaded Straight Mount, L-Bracket, and Clamp Mount for the Exterior Antenna

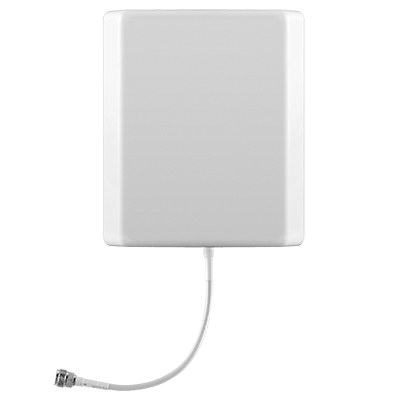

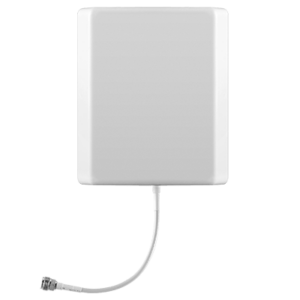

  • Included: Bulkhead Mount (or) Ceiling Mount Interior Antenna (You Choose)
  • Included: Cabling Adapters for Antenna to Amplifier connections where needed

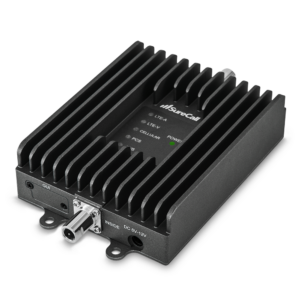

SureCall Fusion2Go Product Specifications

Part Number: SC-Fusion2Go3
Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Input/Output Impedance: 50 Ohm
Maximum Gain: 50 dB
Max Uplink Power: 29 dBm
Noise Figure: ≤5 dB
VSWR: ≤2.0
Gain Adjustment: 20 dB (Automatic)
DC Power Input: 6-15V
Maximum Output Power: 1 Watt EIRP
RF Connectors: FME Male (both ends)
Power Consumption: <10W
Dimensions: 5.625″ x 4″ x 1.125″
Weight: 1.43 lbs

Additional information

Weight 10.0000 lbs
Dimensions 27 × 11 × 7 in
Brand

Sea-Tech
