Description

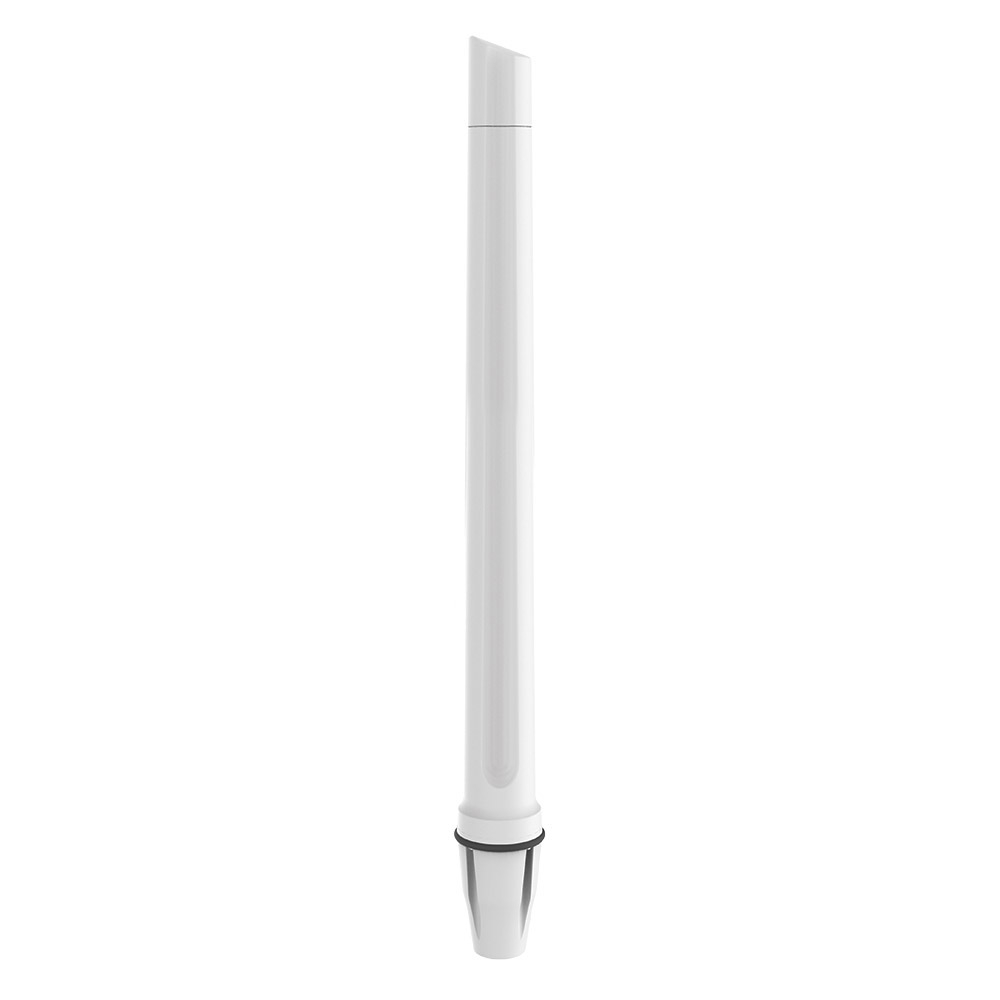

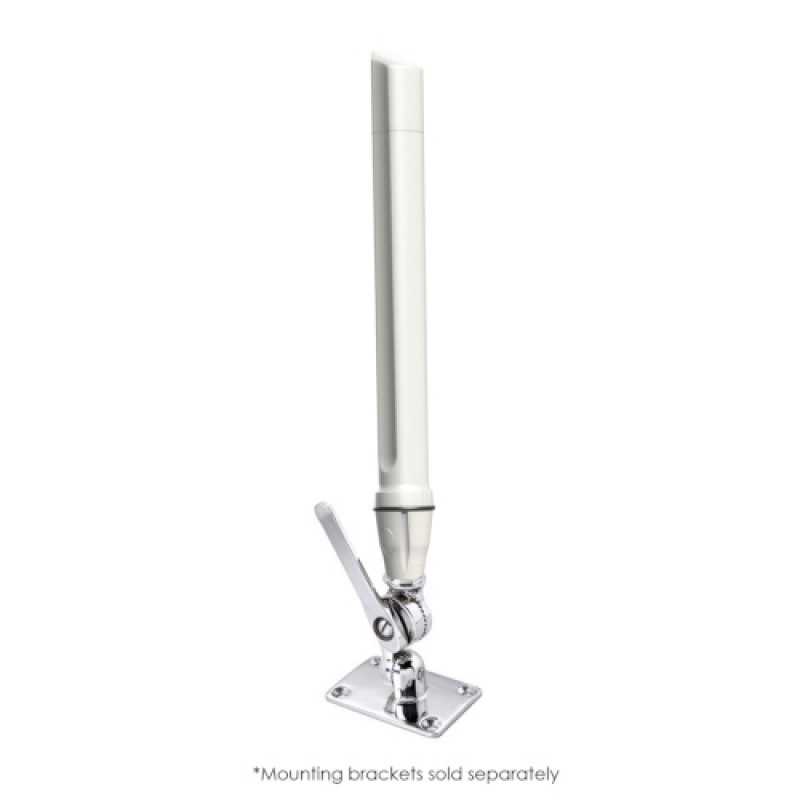

Poynting A-OMNI-0402 High Gain 2×2 MIMO Marine and Coastal LTE Antenna
410-470MHz, 690-960MHz, 1710-2170MHz, & 2300-2700MHz
Max Gain: 6.2 dBi
25in Tall
Electrical Specifications
Frequency Bands:
410-470MHz
690-960MHz
1710-2170MHz
2300-2700MHz
Max Gain: 6.2 dBi each port
VSWR: <2.5:1 over 92% of the band
Feed Power Handling: 10 W
Input impedance: 50 Ohm (nominal)
Polarization: Linear Vertical
Cable loss:
0.35 dB/m @ 900 MHz
0.53 dB/m @ 2000 MHz
0.6 dB/m @ 2500 MHz
0.72 dB/m @ 3500 MHz
DC Short: Yes
Connector: 2 x SMA-male
Cable length: 2 Meters
Cable Type: Twin Siamese HDF 195
Mechanical Specifications
Product Dimensions (L x W): 25 x 3 x 3 inches
Packaged Dimensions: 26 x 3.75 x 3.75 inches
Packaged Weight: 3 lbs
Radome Material: UV Stable SAN Marine ASA
Radome Color: Brilliant White
Environmental Specifications
Wind Survival: 100 mph
Temperature Range (Operating): -40°f to +158°F
Environmental Conditions: Outdoor/Indoor IP68
Operating Relative Humidity: Up to 98%
Storage Humidity: 5% to 95% – non condensing
Storage Temperature: -40°F to +158°F
