Intellian Fleet One: Satellite Broadband

$3,811.12

Are you coastal cruising in the Americas? This Intellian Fleet One system bundled with Inmarsat’s Fleet One Americas Leisure Plan gives you Unlimited Satellite data within 200nm of the American continents!

The Intellian Fleet One is a maritime broadband system, providing simultaneous high-speed data and voice calling.  SMS support via built-in web interface!

The Intellian Fleet One terminal utilizes the Inmarsat satellite network.

  • 1 x IP Voice Line with Analog RJ14 Jack
  • 2 x IP Data RJ45 connection with POE
  • Built-in WiFi (802.11b/g)
  • Data speed ~up to 150kbps
  • Global Satellite Coverage
  • Simple installation with one cable between below decks and above decks equipment

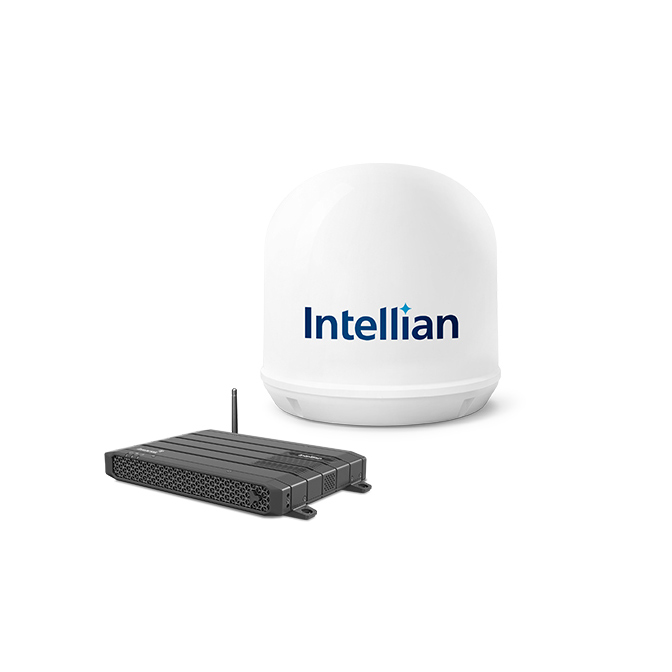

Basic System includes: Intellian Fleet One ADU, Intellian Fleet One BDU, 10m LMR200 RF antenna cable, 1m ethernet cable, DC power cable, mounting bolts/nuts/washers

Redport Optimizer WXA-223

  • Redport Optimizer WXA-223 (new for 2021) (same functionality as WXA-203 and WXA-213 models but with newer processors)
  • (NEW) Make satellite phone calls with your smartphone over WiFi!
  • Control your airtime usage
  • Enable satellite optimized email, weather, blogging, tracking, and more!
  • Compatible with CruisersEmail, Xgate, PredictWind, Sailblogs, Wordpress

Description

Fleet One Inmarsat FleetBroadband maritime terminal

Intellian Fleet One is a maritime terminal designed for Inmarsat’s L-band network ELERA, which enables simultaneous voice and data connectivity up to 150 Kbps. Intellian Fleet One ensures resilient and reliable connectivity at sea.

intellian fleet one terminal icon

All in one solution

Fleet One offers a variety of features such as analog voice lines, a built-in firewall for data security, two LAN ports with PoE and soft PABX. These technical capabilities and GMDSS readiness of Fleet One, makes it ideally suited for smaller coastal based vessels and leisure craft.

Intellian AptusLX for Fleet One

Built-in AptusLX intuitive management tool

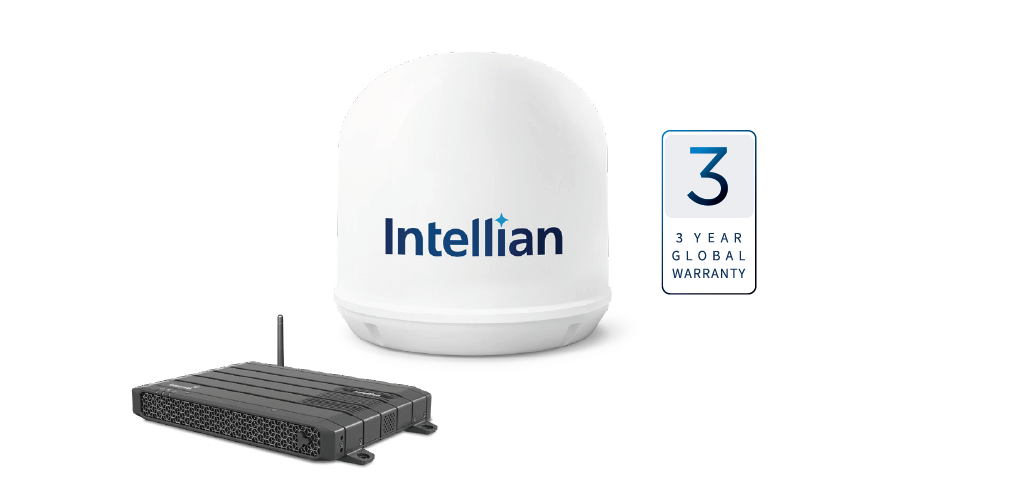

Simple and quick installation via AptusLX, an intuitive web-based platform to manage and control the terminal. Fleet One comes with a three year global warranty.

Intellian Fleet One built-in firewall

Cyber security enhancement

Features built-in firewall enhanced cyber security and incoming/outgoing network traffic will be monitored and controlled.

Intellian Fleet One SOS / GMDSS

Safety at sea

Intellian Fleet One provides all the necessary features related to safety at sea. The Inmarsat 505 Emergency Calling directs a call straight through to an MRCC in an emergency.

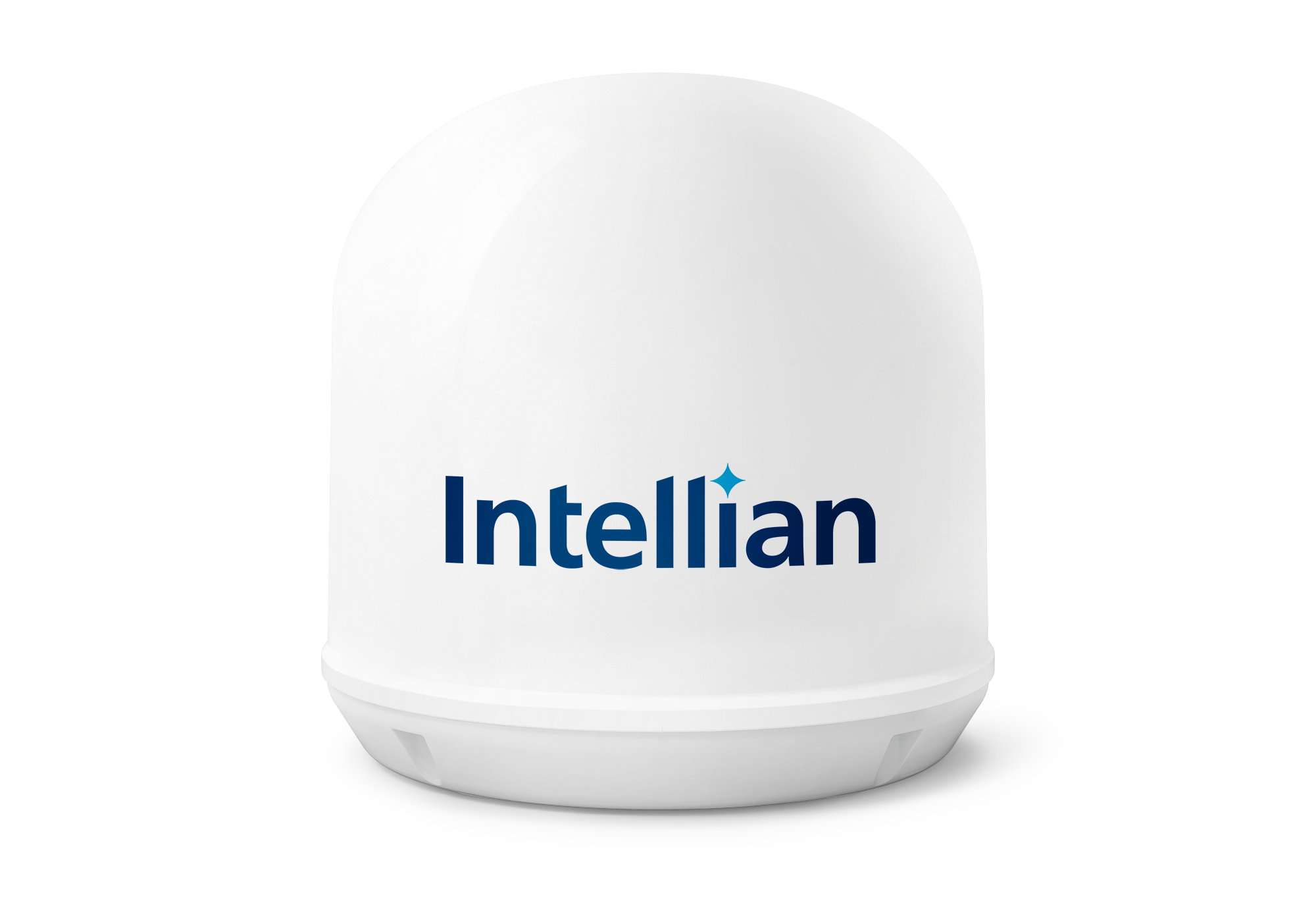

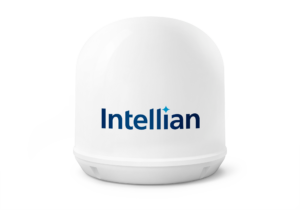

Intellian Fleet One Antenna

Intellian Fleet One compact hardware

Compact and reliable terminal design

The Intellian Fleet One is simple and easy to install and use.

  • Small and light weight terminal
  • Built-in Inmarsat BRM module
  • Efficient two axis helix terminal
  • Unlimited azimuth range
  • Single cable installation
  • Ethernet over coax

Intellian Fleet One Single Cable install

Intellian Fleet One is simple to install



Simple and easy installation

Compact lightweight design for simple and quick installation

  • Single terminal coax cable
  • No RF calibration required
  • Familiar Aptus management software Web GUI
  • Quick firmware upgrade
  • Web & REST API
  • Web server accessible via Wi-Fi connection



Specifications

Radome Dimension

29.11 x 29.45 cm (11.5 x 11.6 inch)

Reflector Diameter

NA

Terminal Weight

4.9 kg / 10.8 lb

TX Frequency

1626.5 MHz ~ 1675.0 MHz

RX Frequency

1518.0 MHz ~ 1559.0 MHz

TX Gain

NA

RX Gain

NA

G/T

> -15.5 dB/K



Intellian Fleet One For Inmarsat

The Intellian Fleet One terminal utilizes the Inmarsat satellite network.

  • 1 x IP Voice Line with Analog RJ14 Jack
  • 2 x IP Data RJ45 connection with POE
  • Built-in WiFi (802.11b/g)
  • Data speed ~up to 150kbps
  • Global Satellite Coverage
  • Simple installation with one cable between below decks and above decks equipment

Basic System includes: Intellian Fleet One ADU, Intellian Fleet One BDU, 10m LMR200 RF antenna cable, 1m ethernet cable, DC power cable, mounting bolts/nuts/washers

Optional Accessories:

AC/DC Power Adapter – MC-0001
19″ Rack Mount Bracket with Cable Supports – MC-0002
Pole Mount Kit – MC-0003

Additional information

Weight 38 lbs
Dimensions 21 × 21 × 21 in
Brand

Inmarsat, Intellian

HS Code

[851762-1020] RACK, MSS

ECCN

5A991.b

MPN

F4-A100-S

upc

886310032777

Fleet One Coverage and Plans


Fleet One Coastal Plans (requires a Fleet One Coastal SIM Card)
Lower-Cost data within Coastal Areas plus global satellite voice service!

Fleet One Coastal Keep-Alive Plan – $25/Month

  • 0 MB Data Included – $7.00/MB Used
  • 0 Minutes Voice Included – $0.60/Minute
  • Redport Optimizer with CruisersEmail or similar highly recommended

Fleet One Coastal 10MB Plan – $60/Month

  • 10 MB Data Included, then $6.00/MB Additional
  • 25 Minutes Outgoing Voice Calls Included for Free, then $0.60/Minute Additional
  • Redport Optimizer with CruisersEmail or similar highly recommended

Fleet One Coastal 25MB Plan – $160/Month

  • 25 MB Data Included, then $5.50/MB Additional
  • 60 Minutes Outgoing Voice Calls Included for Free, then $0.60/Minute Additional
  • Redport Optimizer with CruisersEmail or similar highly recommended

Fleet One Coastal 100MB Plan – $500/Month

  • 100 MB Data Included, then $5.00/MB Additional
  • 0 Minutes Voice Included  $0.60/Minute Used
  • “INTEGRA Control” Data Management Service – $40/Month Optional (Highly Recommend)

Fleet One Global Plan (requires a Fleet One Global SIM Card)
Unrestricted Global Data and Voice within Inmarsat’s Fleet One Global Coverage Area

Fleet One Global Plan – $130/Month

  • 13 MB Data Included, then $9.00/MB Additional
  • 0 Minutes Voice Included – $0.60/Minute Used
  • Redport Optimizer with CruisersEmail or similar highly recommended
  • “INTEGRA Control” Data Management Service – $40/Month Optional (Highly Recommend)

Fleet One Americas Leisure Unlimited Plan (requires a Fleet One Coastal SIM Card)
Unlimited data within Coastal Americas plus global satellite voice service!

Fleet One Americas Leisure Plan – $230/Month

  • Unlimited Data within Green “Americas Coastal” Region
    • First 60MB Data at 150kbps Speed
    • 61+MB Data at 32kbps Speed
    • Speed resets to 150kbps speed each month
    • $19.00/MB Used in Red “Out-Of-Area” Coastal Regions
    • No Data Available outside Coastal Areas
  • 0 Minutes Voice Included – $0.60/Minute
  • CruisersEmail Service –  $20/Month Optional Add-On
  • “INTEGRA Control” Data Management Service – included ($40/Month Value)
