Description

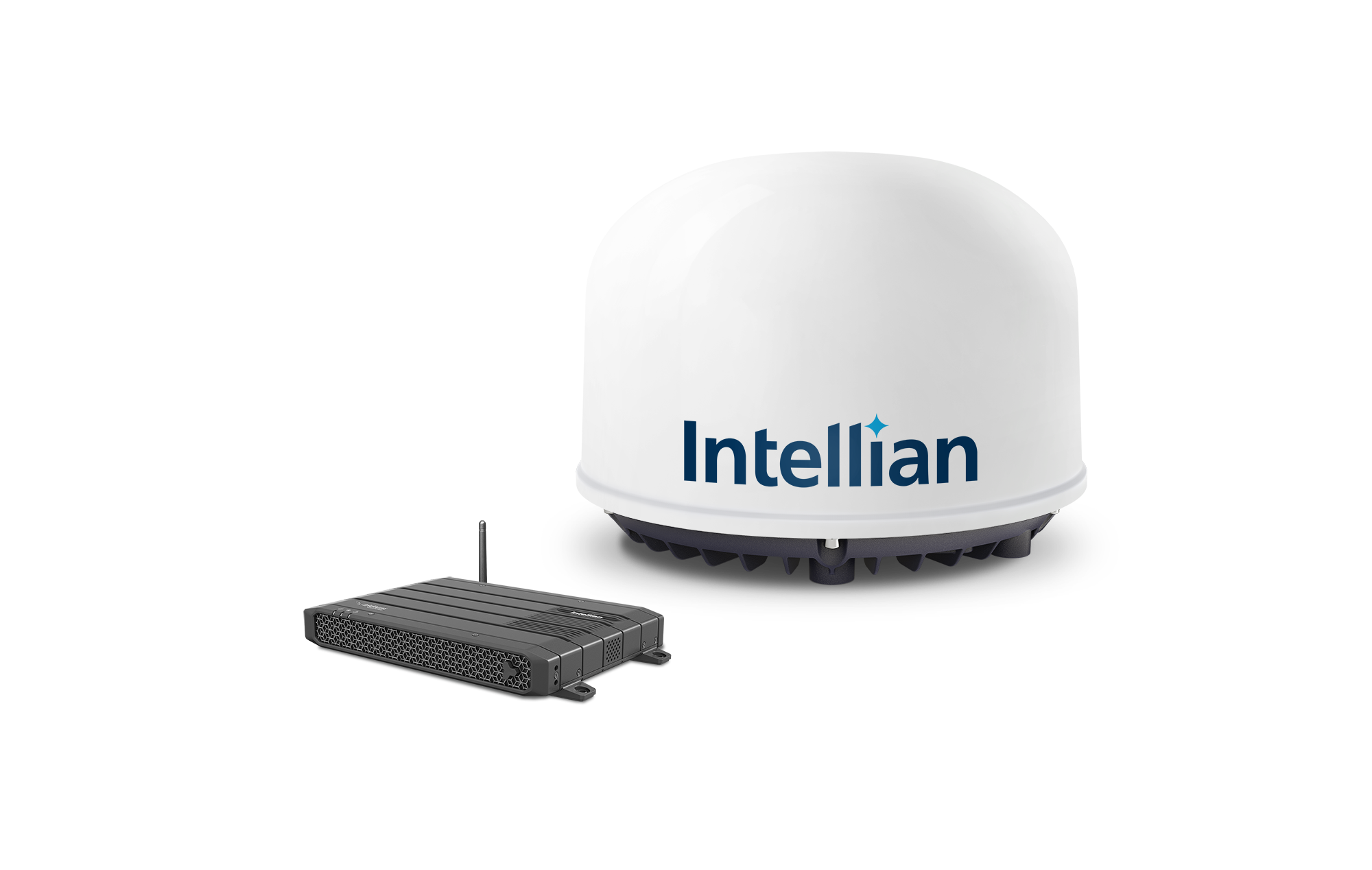

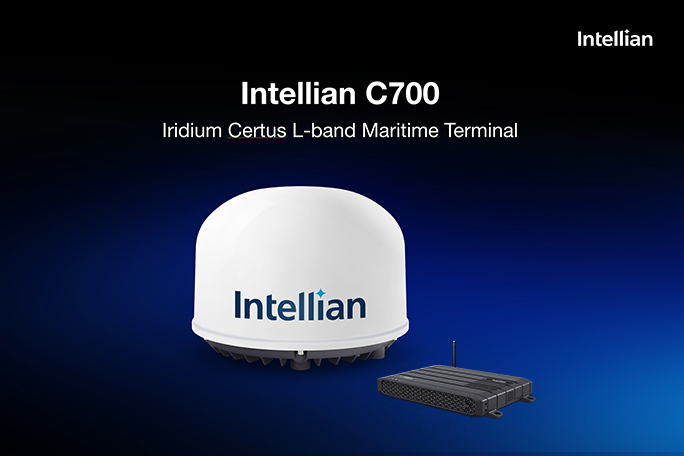

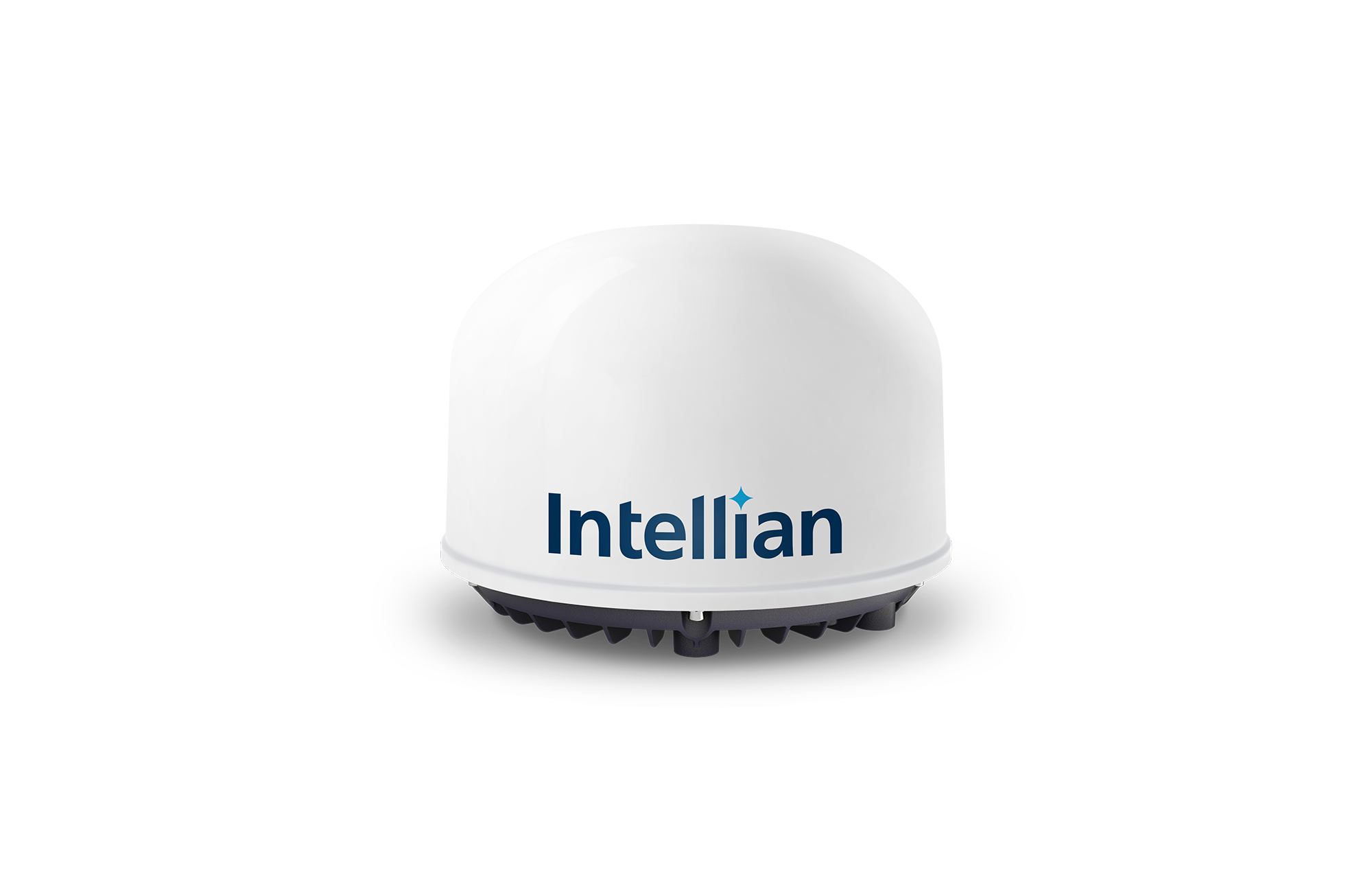

The Most Technically Advanced Iridium Certus Maritime Terminal
The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy.

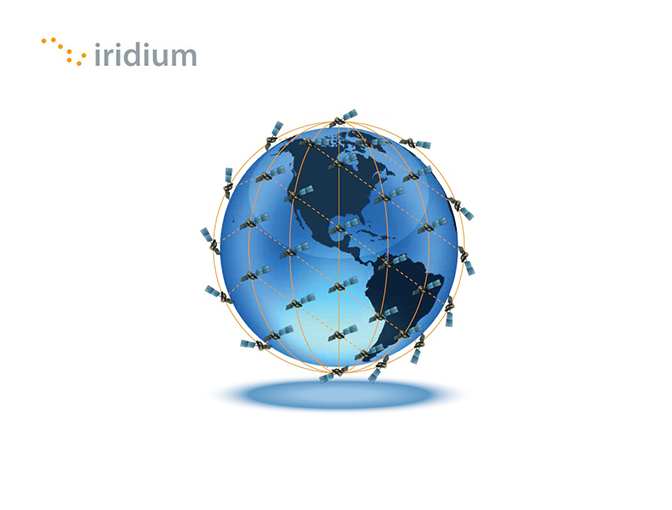

True Global Coverage
- Iridium LEO network of 66 satellites
- Pole to Pole coverage
- Low-Earth Orbit, stronger signals
- Low latency, high speed and always-on
- GMDSS Ready
Best in Class Performance

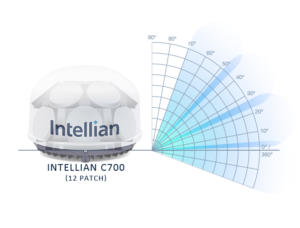

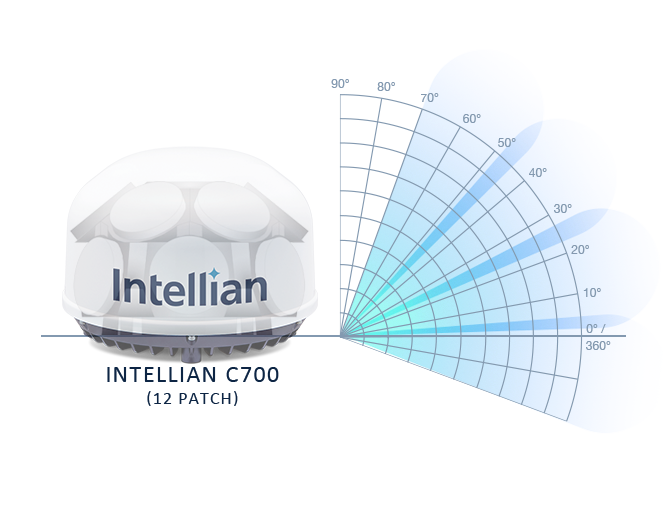

- Using a 12 element patch phased-array antenna for maximum coverage
- High power H2 antenna amplifier for 352 Kbps uplink speed
- Excellent performance during any ship motion and low satellite elevation angles
- VSAT companion for out of band management, supporting multiple users
- Optimal satellite and beam handover ensuring seamless voice and data connectivity

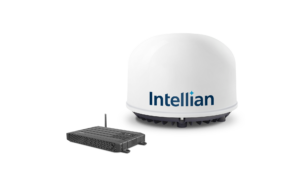

The perfect VSAT companion
- VSAT + C700 Bundled packages available
- Data communication throughput – 352 Kbps Up, 704 Kbps Down
- Out-Of-Band management
- Powerful API enables full integration with Smart Boxes
- 19″ Rack mount version available

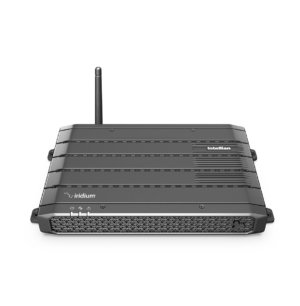

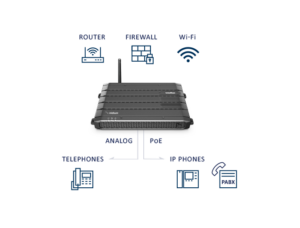

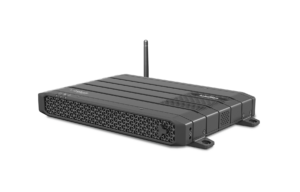

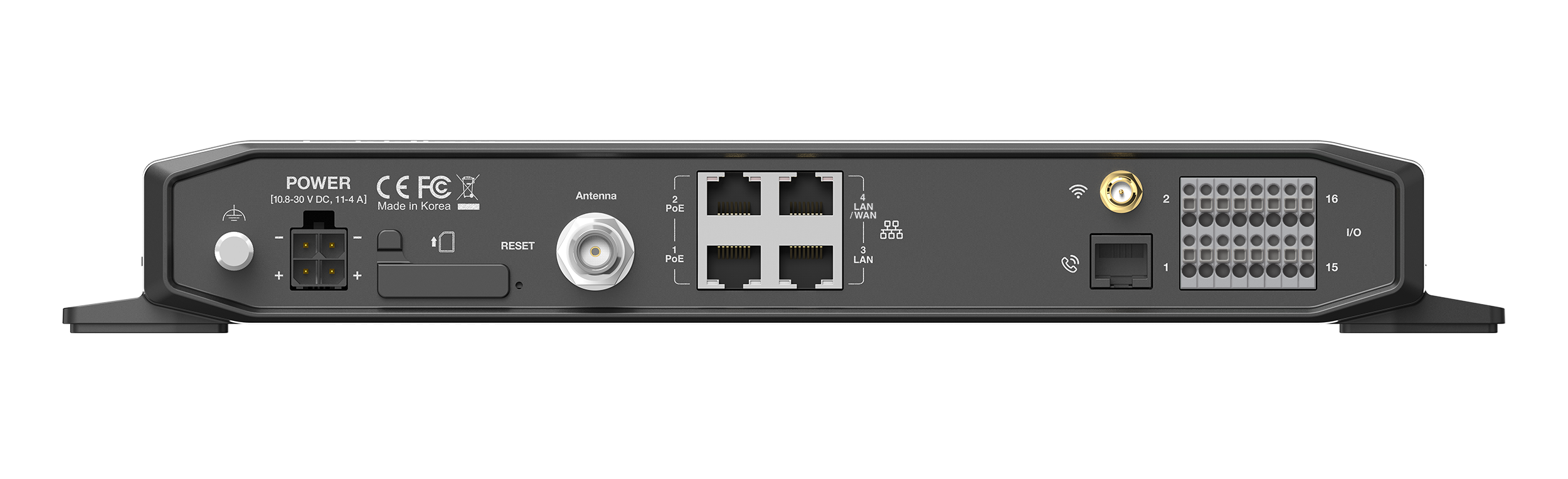

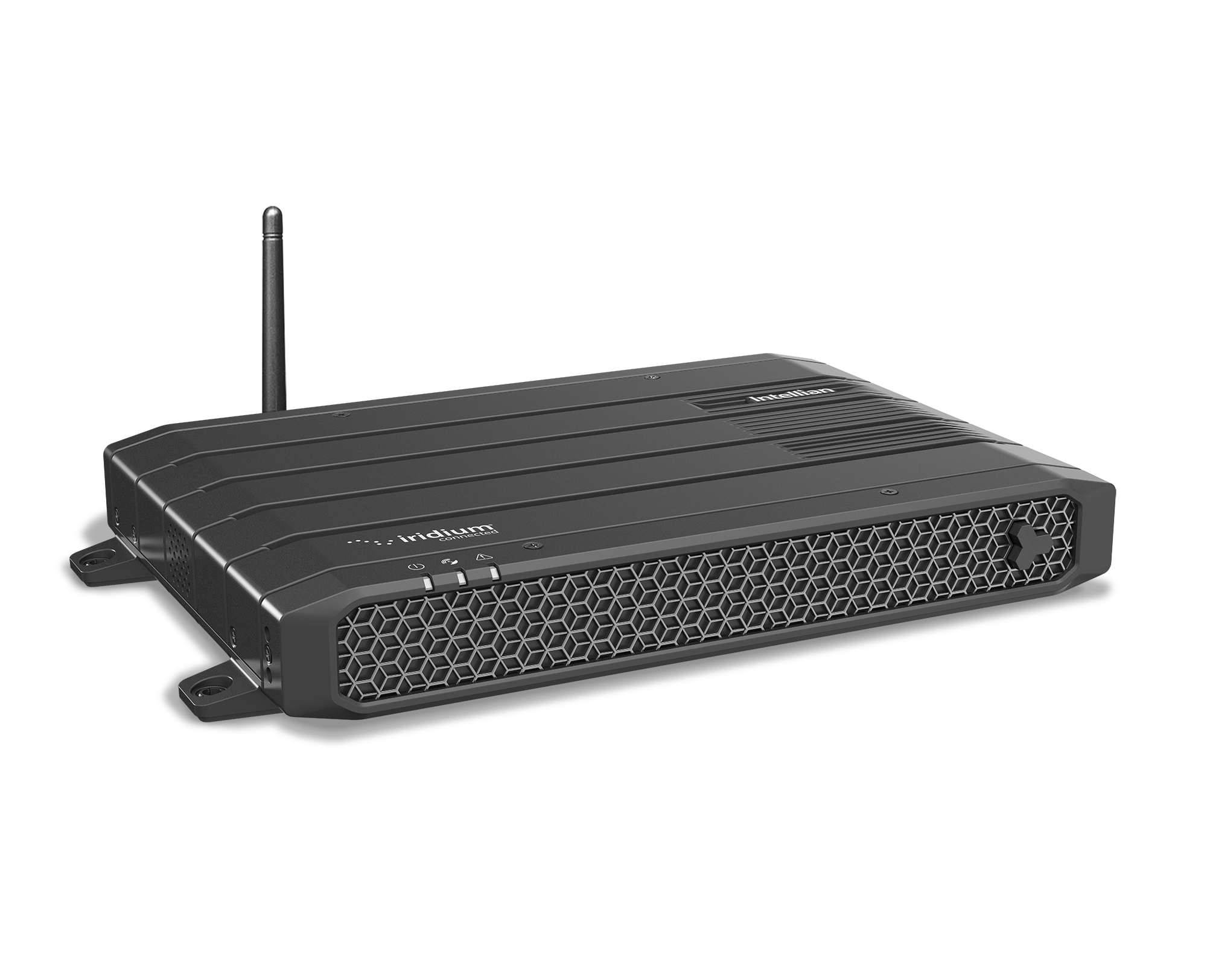

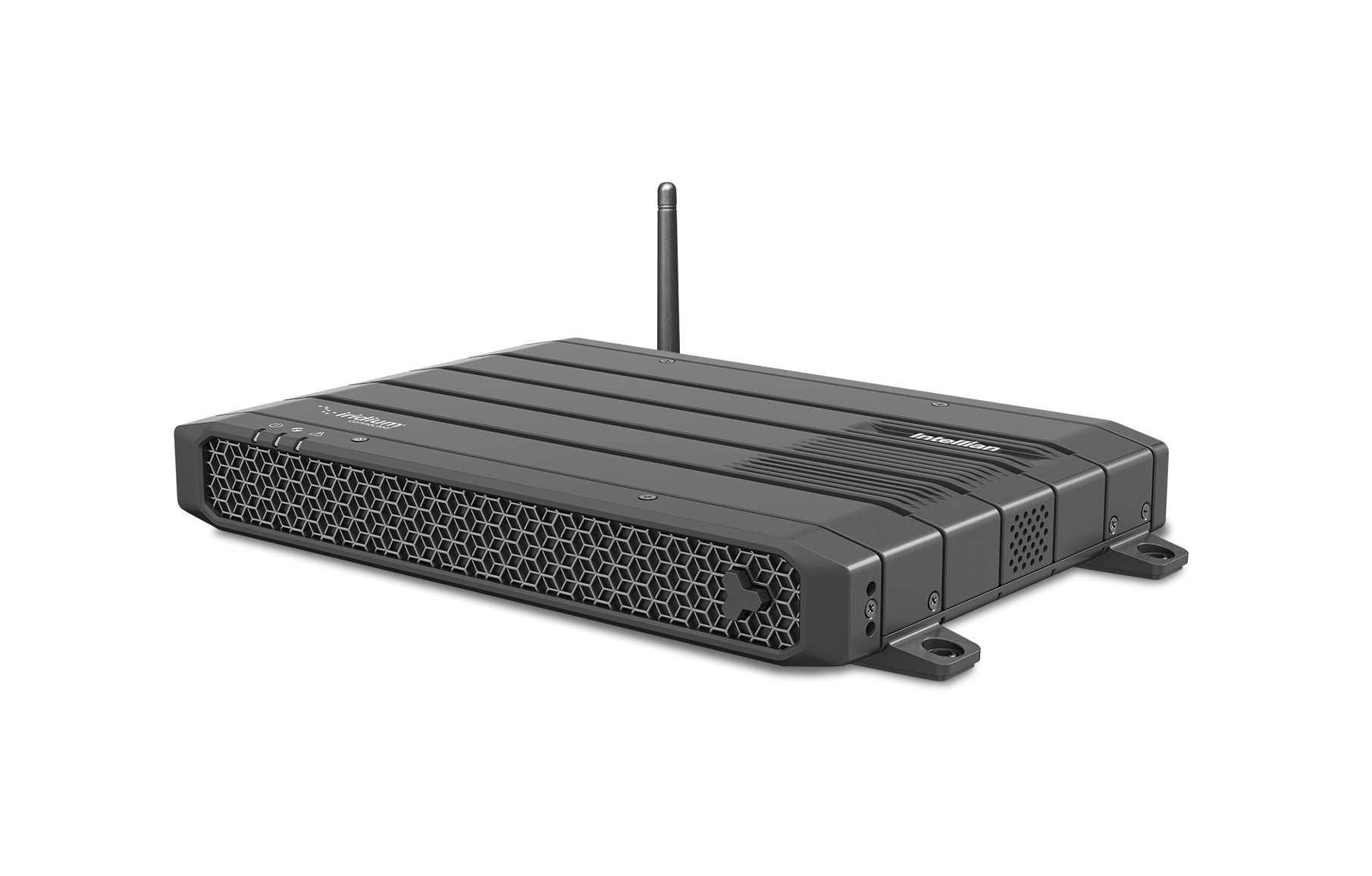

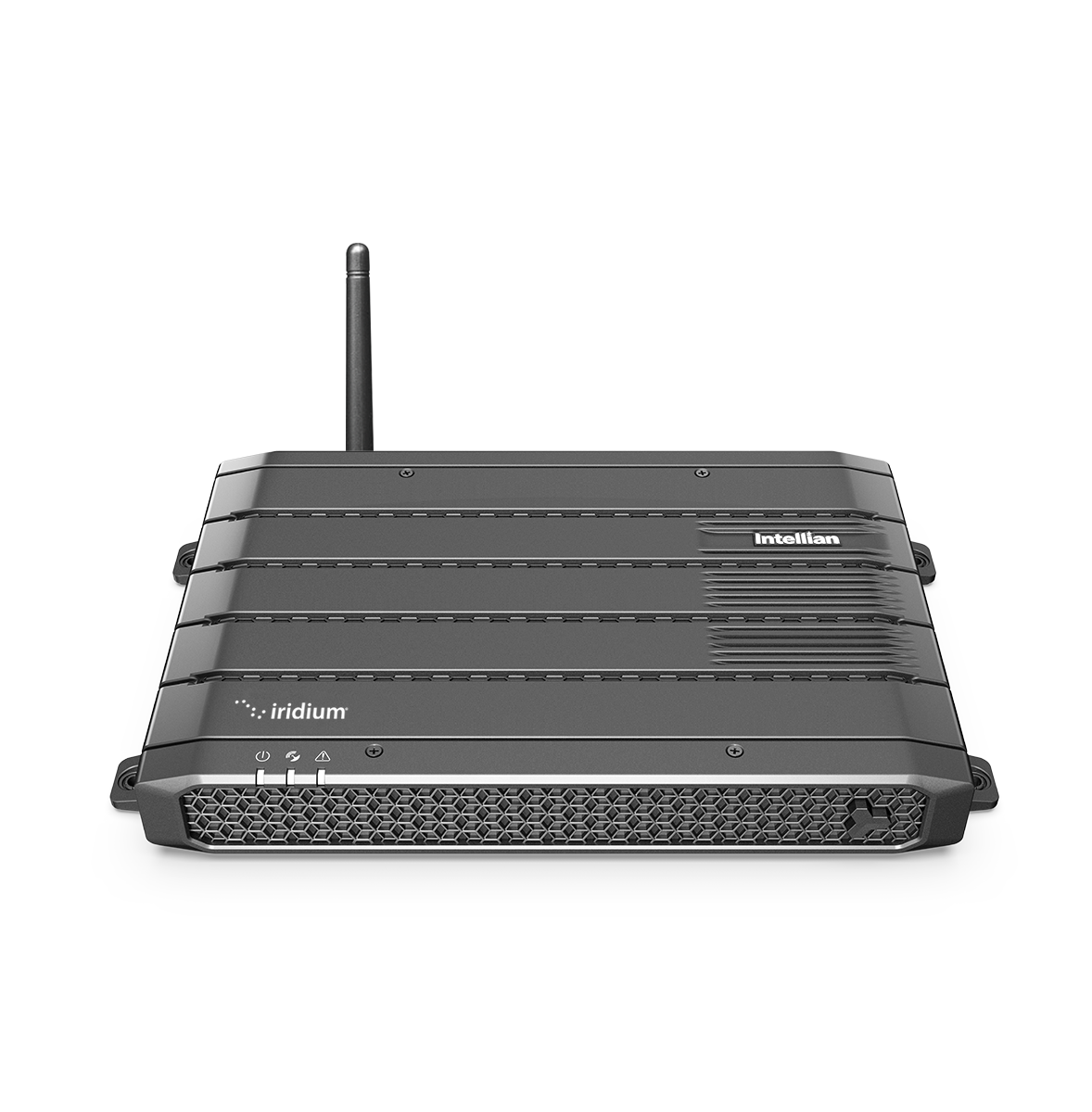

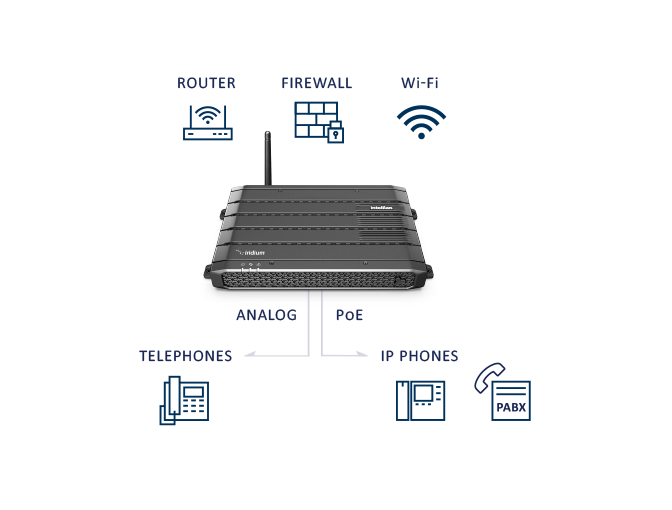

All-In-One Terminal
- Built-in Analog Terminal Adapter (ATA) for connecting analog phones and onboard PABX
- Built-in Power-over-Ethernet (PoE) for powering IP devices, SIP phones, wireless access points
- Built-in private automatic branch exchange (PABX) telephone switching system
- Built-in Router supporting multiple users of the terminal
- Built-in Firewall for cyber secure connections
- Built-in WAN for least-cost routing of data traffic via 3G/4G or similar services
- Built-in Wi-Fi
- GMDSS Ready

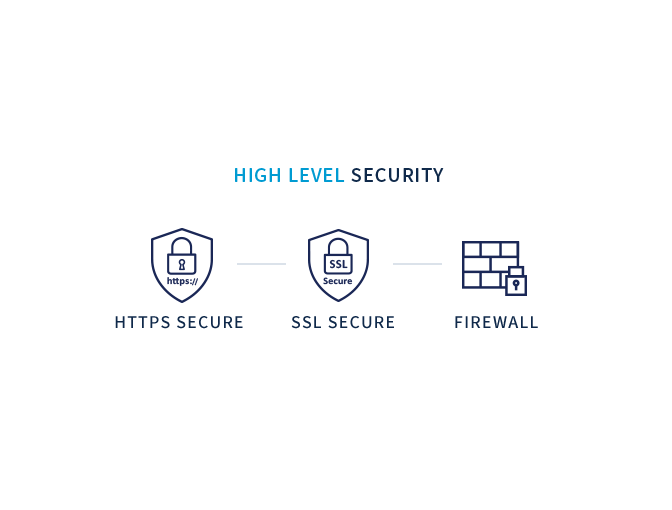

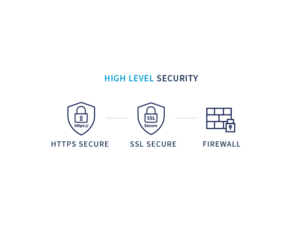

Enhanced Cyber Security
- Built-In Firewall
- HTTPS, TLS certificate
- Data Encryption

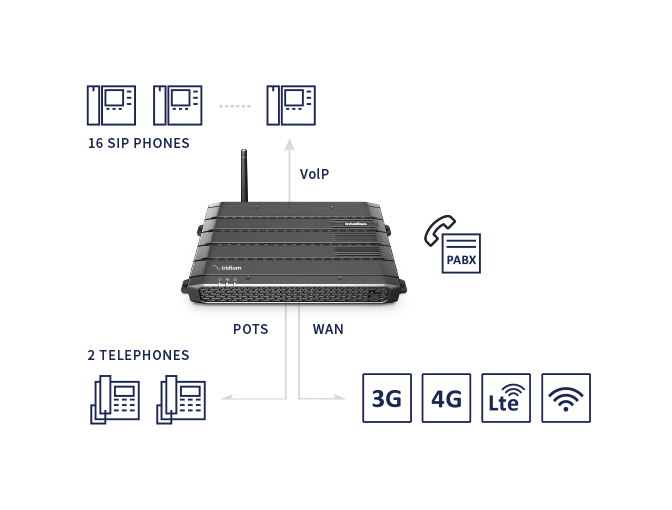

Advanced Voice Solution
- Soft PABX & LTE interface capability
- 3 HD Quality voice lines
- Up to 16 SIP Phones
- Up to 2 analog telephones
- 3G/4G/LTE WAN Port

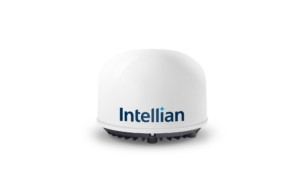

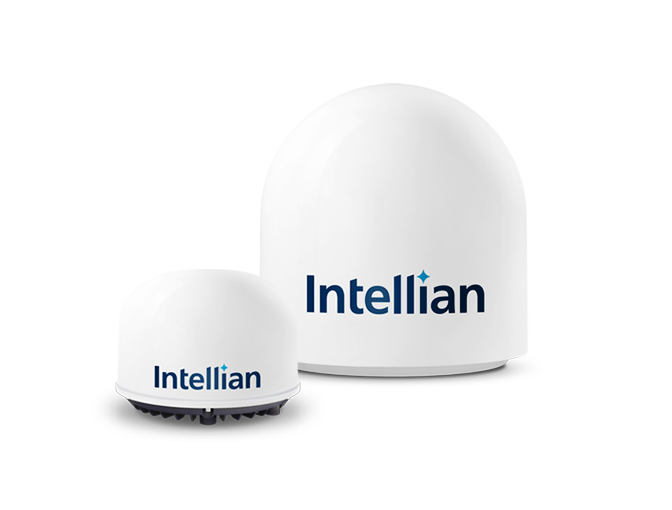

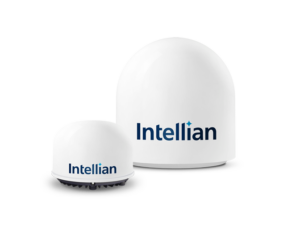

Radome Dimension
370 x 270mm (14.5 x 11.0 inch)
Antenna Weight
7.3kg / 16 lb
TX Frequency
1616 ~ 1626 MHz
RX Frequency
1616 ~ 1626.5 MHz
