Beam PotsDock Extreme: Docking Stations for Iridium 9575 Satellite Phone


Beam PotsDOCK Extreme: Satellite Docking Station is a general purpose dock for Iridium Extreme (9575) satellite phone, with BlueTooth and other great features.

Available on backorder

SKU: BEAM-PD-EXTREME Categories: , , Tags: , , , , , , ,


PotsDOCK Extreme from Beam Communications is a compact docking station for Iridium Extreme satellite phone specifically designed to support RJ11, Bluetooth, and tracking. The PotsDOCK Extreme has POTS/RJ11 connection, supports multiple standard telephones and can be integrated to PABX system.

Beam PotsDOCK Extreme uses the Iridium satellite network.

Beam PotsDOCK Extreme: Satellite Docking Station is a compact docking station specifically designed to support RJ11, Bluetooth and tracking. PotsDOCK allows the Iridium Extreme satellite phone to be connected with an RJ11/POTS interface enabling standard corded, cordless or DECT handset connection or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones like a standard phone network.

Beam PotsDOCK Extreme: Satellite Docking Station provides extra features such as Bluetooth for voice connectivity along with satellite tracking and alerting which can be configured to support periodic polling or remote emergency alert reporting.

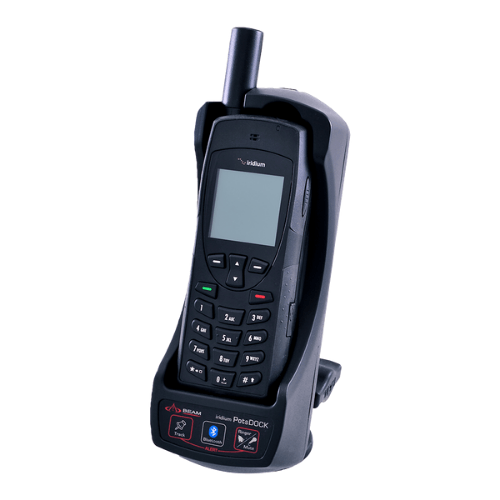

Iridium Extreme satellite phone fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilise the SOS emergency function, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.

Beam PotsDOCK Extreme: Satellite Docking Station supports the use of an optional compact BEAM Privacy Handset that can be attached next to the PotsDOCK for added convenience if required.

The dock features phone charging, a USB connection for data connection, integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the dock making it ready for use at all times.

Additional information

Weight 2 lbs
Dimensions 12 × 7 × 4 in



Dimensions: 21.2cm x 8.2cm x 7.5cm
Weight: 0.45kg
Operating Temperature: -20°C to +70°C
Operating Humidity: < 85% non-condensing
External Antenna: no
Mounting: Universal mounting bracket (RAM)


Input Voltage: 9 – 32V DC


Streaming IP: n/a
Data: yes
GPS: yes
Tracking: yes
SOS: yes
Bluetooth: yes

Call features

Voice: yes
Handsfree: no


Rental Options: no

Product Interfaces

Mini USB
POTS / RJ-11
Privacy handset

In the box

Quick start guide
User manual
DC power cable/fuse kit
Universal mounting bracket (RAM)
PotsDOCK Extreme
AC/DC power adapter
