Unlimited Global Broadband VSAT – Complete Package – Powered by Aura

$26,995.00

This is a complete hardware package for the Aura VSAT Network:

Includes:

  • Data Speeds up to 4/2mbps
  • Unlimited Data Plans, No Data Caps, No Throttling

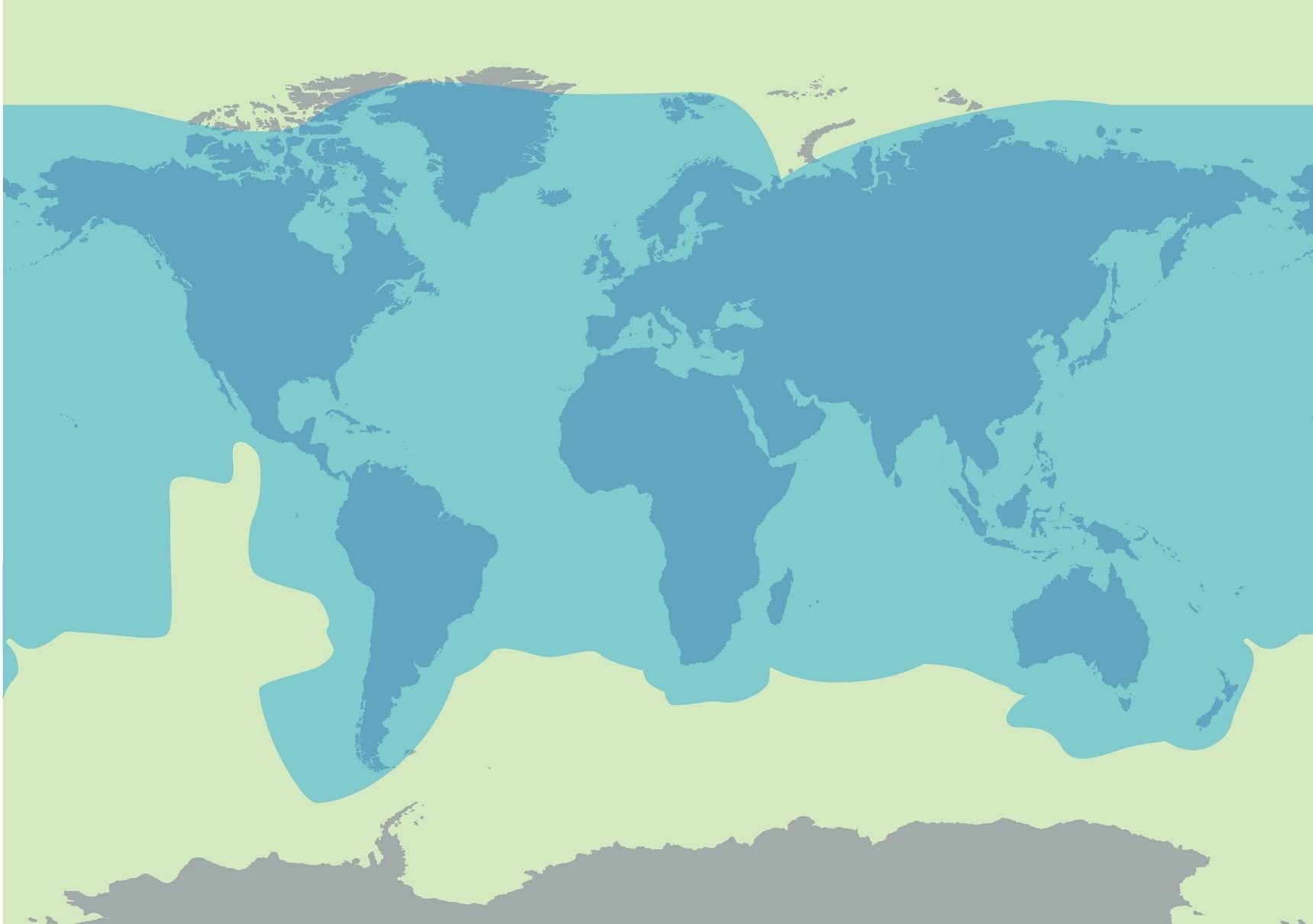

  • Worldwide Coverage
  • Support for Netflix, Zoom, Video Conferencing

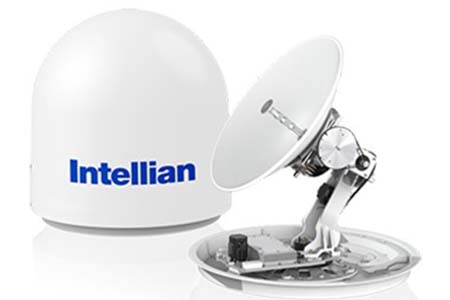

  • Intellian v60E Ku-band with 65cm (25.6inch) Reflector , X-pol, 6W NJRC BUC for Aura VSAT Network
  • iDirect IQ200 Satellite Modem (Included in package)
  • Vertical Mounting Rack with screws and nuts

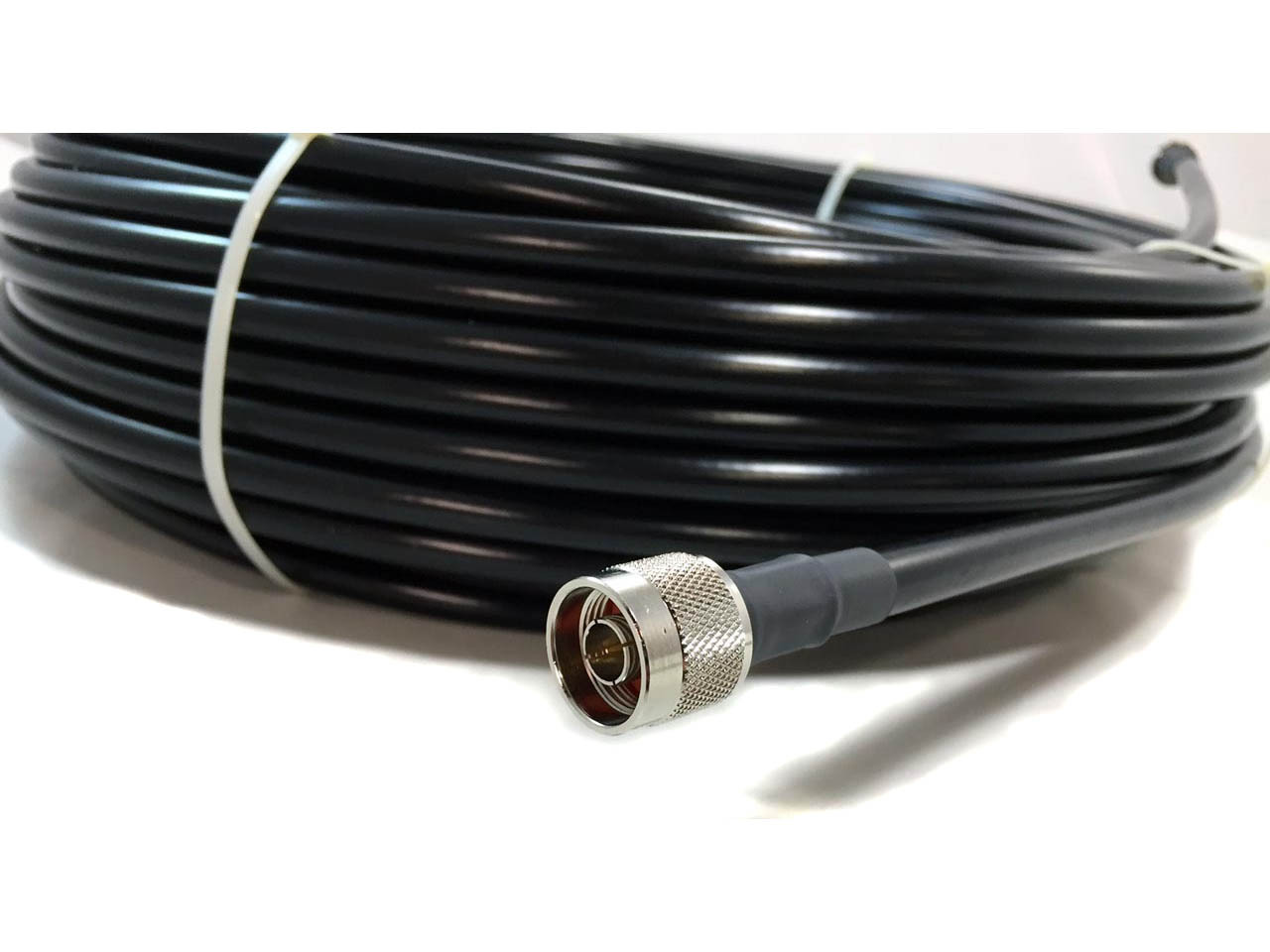

  • 100ft Antenna Installation Coax cable and crimp on connectors
  • Modem Cables (Coax and Ethernet)
  • Preprogrammed Dedicated Gyrocompass for Heading data
  • Coax and Ethernet Patch Cables, Antennas, and Accessories included for a complete install
  • 8 port POE Smart Switch included

Preprogramming of the NMEA Gyrocompass is included in the Aura VSAT installation services.

Standard Truck Freight within the USA is included

Please describe your boat *

Installation Options *

Professional Installation Services are required for VSAT Systems.

Sea-Tech is a certified Aura/Intellian value-added-reseller (VAR) and will provide remote installation support for your onsite marine electronics installer.

If you prefer to have Sea-Tech Systems and/or one of Sea-Tech’s subcontractors perform the onsite install, choose full installation.

Note: Custom mounting for the Intellian V60e Antenna may be required and varies by vessel type. Any custom fabrication may be billed as an additional cost.

SKU: INTE-VSAT-V60E-AURA-PKG Categories: , Tags: , , , , , , , , , , , , , , ,

Description

v60E

Reliable and Powerful 65cm Maritime System

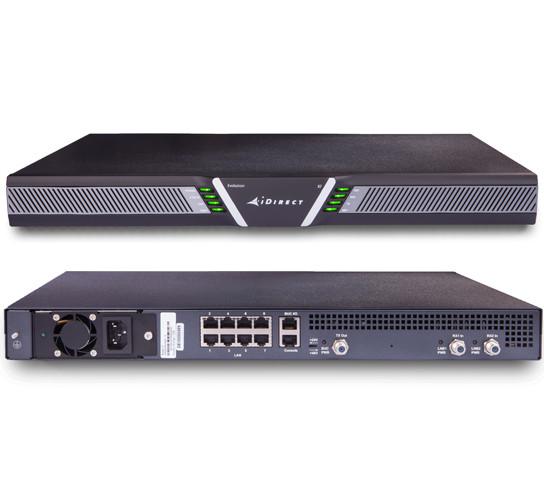

iDirect X7 Modem, Mounting Rack, Cables, and Accessories Included









v60E Highlights

Advanced Performance and Design

Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 65 cm class systems. The v60E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.

  • Best RF Performance in 65cm class
  • Highly efficient performance with a compact and lightweight mechanical structure

Simplified 6W Single BUC

  • NJRC Ku-band 6W BUC is provided as standard

Controlled Costs with Light and Compact Form-factor

With its light and compact form-factor, the cost of installation and logistics is reduced. The weight of the antenna system is only 42kg, allowing installation without a crane and this saves the total cost of installation.

  • Reduced spare parts more than 40% with modularized components
  • Advanced design ensures high reliability and simplified maintenance to reduce total cost of ownership



Simplified installation & enhanced AptusNX

Combining Tx, Rx and DC power into one coaxial cable solution with an external dome-on connection enables faster and reduced costs of installation for the v60E. It also eliminates the need to remove the radome during installation. Users can commission the system using AptusNX by simply plugging a laptop into the ACU, without any need to download extra software. The AptusNX uses an installation wizard with a step-by-step commissioning guide to easily complete setup, and with enhanced diagnostic capabilities, the AptusNX can send an alert to the network operator when preventative maintenance is required.

  • Responsive embedded web application, platform agnostic.
  • Simple operation with automated and preconfigured dashboard
  • Single coaxial cable with external cable connection – Pre-slung lifting straps – rapid deployment crates
  • Installation wizard with step by step commissioning guide within AptusNX

Single Coaxial Cable

  • Combined Tx, Rx and DC power in one coax cable
  • Only one coax cable connection between antenna and ACU

Open Platform Compatibility

  • Fully compatible with all major service providers
  • Preconfigured modem settings provided in AptusNX

AptusNX

  • Built-in web interface for remote management, control and updating brings tech support onboard
  • Intuitive configuration wizard including bow-offset and accurate diagnostics and modem pre-configuration

Pain-free Installation

  • Dome-on external cable connection without radome hatch open
  • No shipping brackets eliminating the need to open the radome during installation and testing

Gyro-free Operation

  • No input required from ship’s heading device
  • Quick setup to reduce installation time. Automated bow offset function in AptusNX

Global Satellite Library

  • Preinstalled database of detailed satellite data with one-touch remote update using AptusNX
  • Customizable satellite library when required for a specific network

Auto Beam Switching (ABS)

  • Supports ABS via the OpenAMIP protocol from iDirect and Comtech’s ROSS Open Antenna Management (ROAM) protocol



v60E



PRODUCT MODEL

Intellian v60e X-pol only w/6W BUC
Part Number:VE-60-E1YN

BUC OPTIONS

NJRC 6W Ku-band BUC (NJT8376UN)
Part Number VE-1012

RADOME & ANTENNA

Radome Height: 93.5 cm / 36.81″
Radome Diameter: 86 cm / 33.85″
Reflector Diameter: 65 cm / 25.6″
ADU Weight: 42 kg / 92.6 lbs

STABILIZED PEDESTAL ASSEMBLY

Platform: 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range: Unlimited
Elevation Range: -20º to +115º
Cross-level Range: Up to ± 37°
Stabilization Accuracy: 0.2° max in presence of specified ship motions

RF PERFORMANCE

TX Frequency: 13.75 ~ 14.5 GHz Ku-band
TX Gain: 37.9 dBi @ 14.25 GHz (excl. radome)
RX Frequency: 10.7 ~ 12.75 GHz Ku-band
RX Gain: 36.5 [email protected] GHz (excl. radome)
G/T: 15.4 dB/[email protected] GHz (Clear Sky, 30° Elevation)
BUC Power: 6W
LNB: Universal PLL LNB
Polarization: Linear, Cross-pol Only
Antenna Cable: Single 50 ohm coax cable for Rx, Tx, FSK, Reference and Power from ACU to ADU

ANTENNA CONTROL UNIT

Dimensions(WxDxH): 43.1 cm x 35.0 cm x 4.4 cm / 17” x 13.8” x 1.7”
Weight: 5.2kg / 11.5 lbs
LED Indicator: 6 LEDs for Power, INT/Search, Tracking, Lock, Setup, Error
Gyrocompass Interface: NMEA0183
Modem Interface: Ethernet port / RS-232C,-422C / I/O Console
Remote Management: Yes
Management Port: Yes
Intellian LAN Port: Yes
Power Requirement: 100~240 V AC, 50~60 Hz, 3A





Additional information

Weight 243 lbs
Dimensions 45 × 40 × 47 in
Network

Aura, Intelsat

Brand

Intellian

MPN

VE-60-E1YN

upc

886310033354

ECCN

EAR99

HS Code

[851779-4000] VSAT
