Airmar GH2183 Heading Sensor Kit for VSAT Systems

$1,046.27

This package includes the Airmar GH2183 GPS and Heading Sensor with NMEA2000 and NMEA0183 cable assembly.

Adding this to your Intellian, Cobham, or KVH VSAT system provides necessary vessel heading information for the antenna without requiring any interfacing with the vessels existing NMEA2000/0183 equipment and allows for proper heading and tracking information for the antenna even while on anchor without having to leave the vessels GPS/MFD and Autopilot powered on.

Package Includes: (Total MSRP Value $1329)

  • GH2183-10 Heading Sensor with Solid State Compass + GPS, 10Hz – MSRP $999

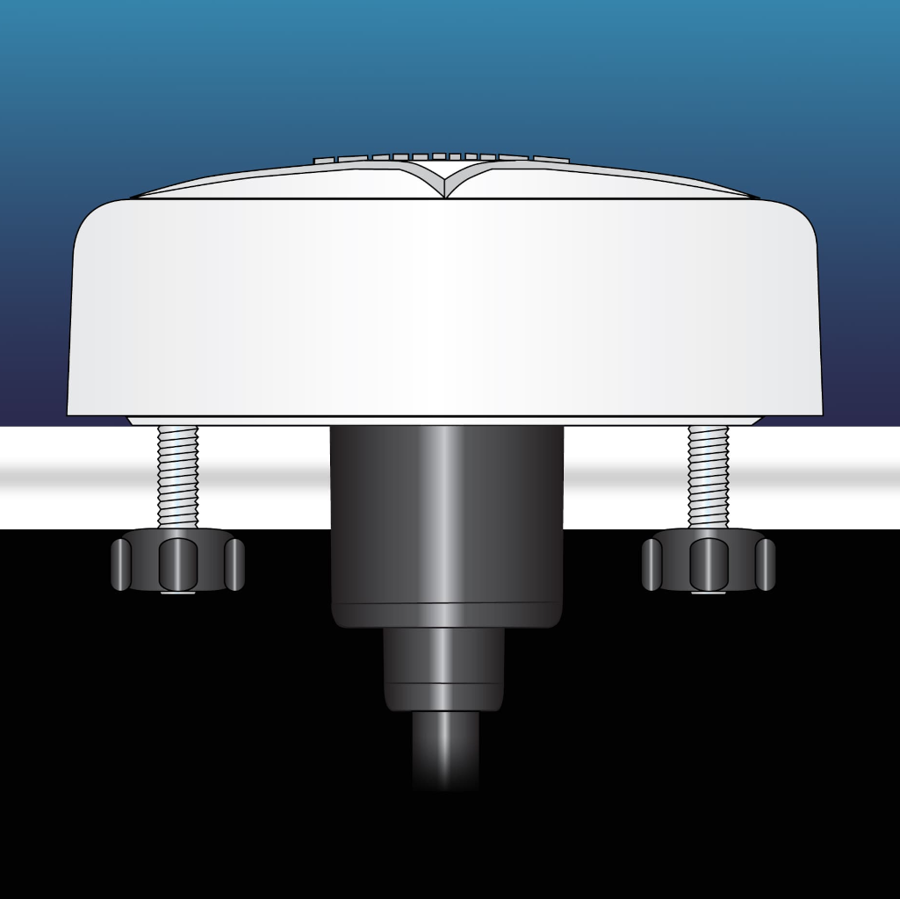

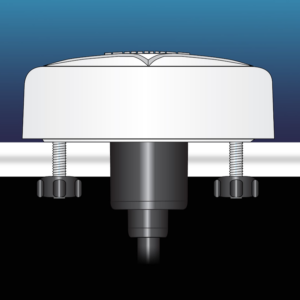

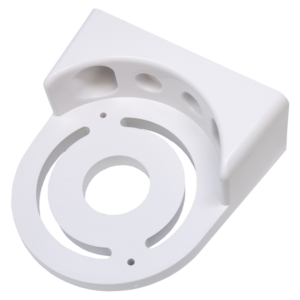

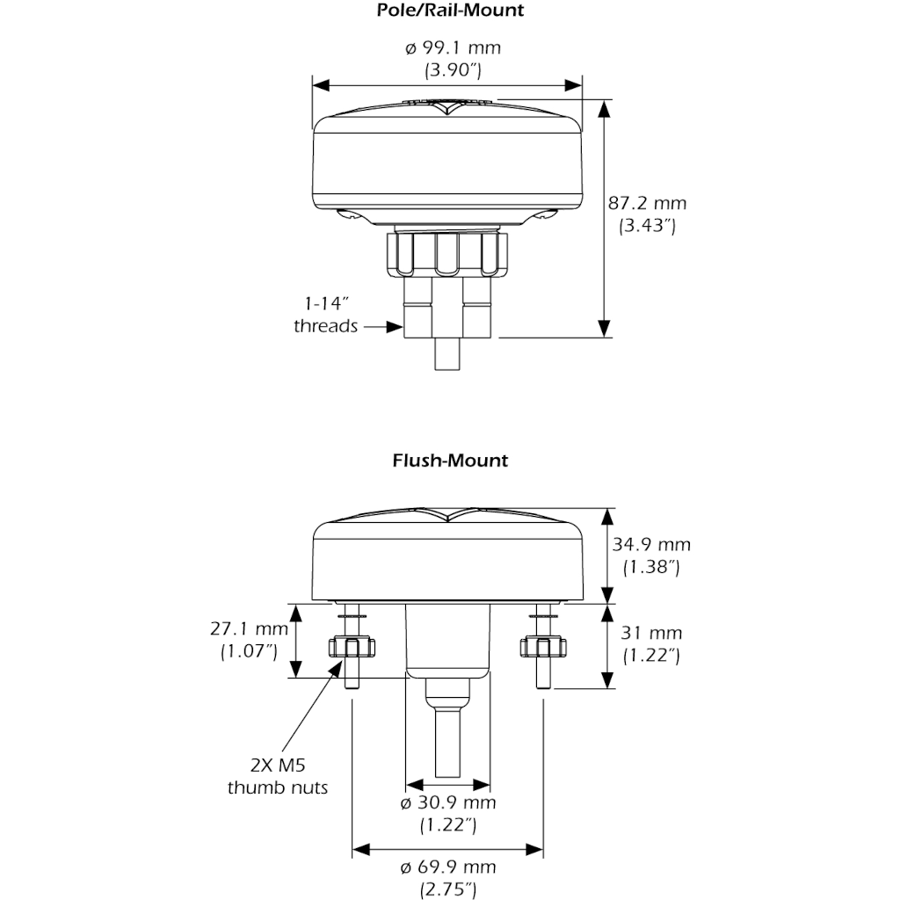

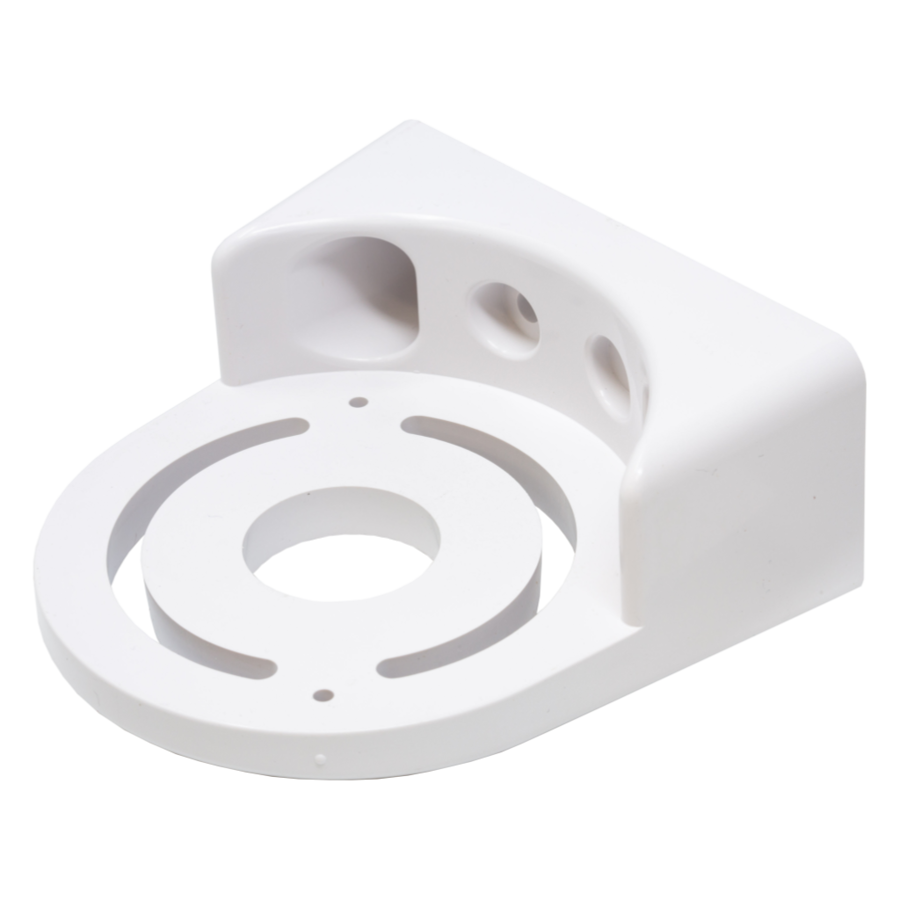

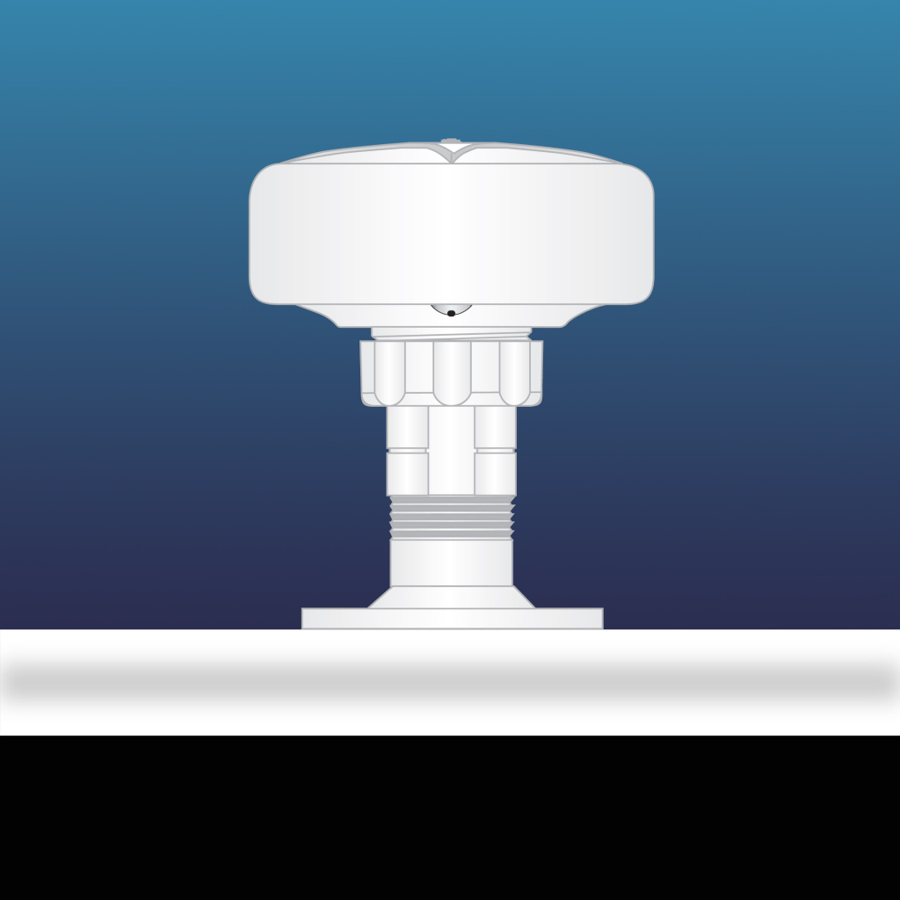

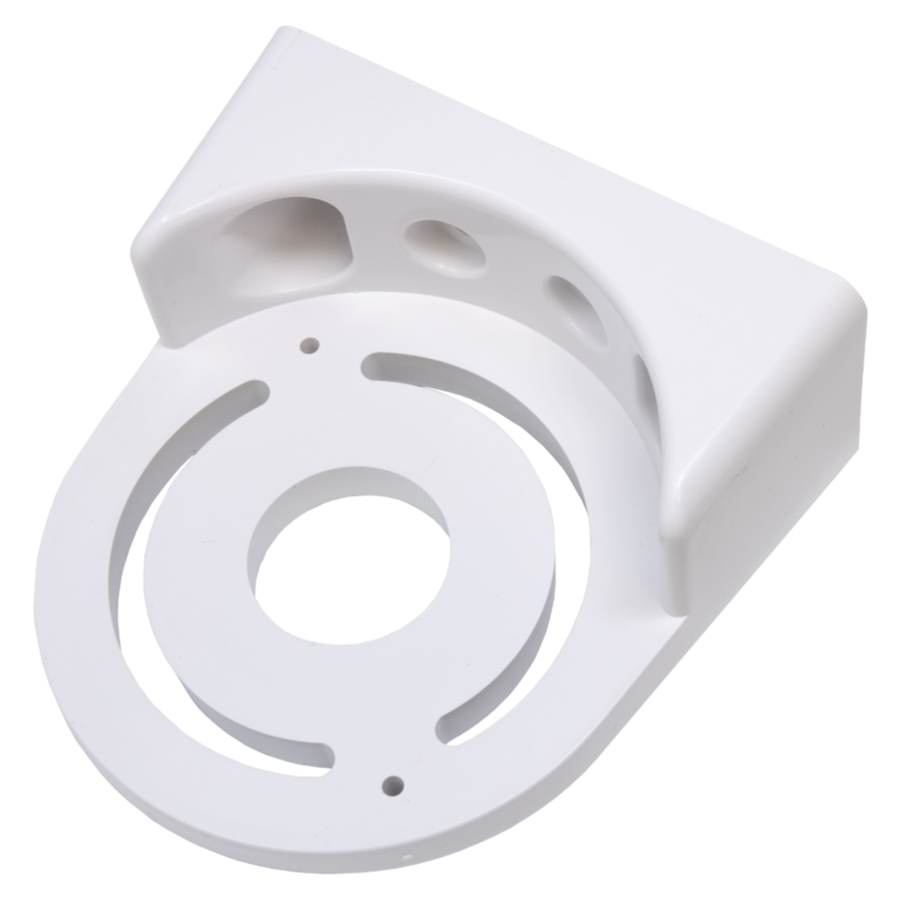

  • Mounting Bracket for H2183 Compass & Gyro – MSRP $15.00

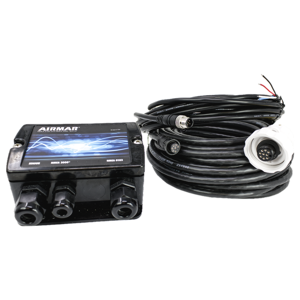

  • NMEA 0183 / NMEA 2000® Combination Cable Kit, 15m – MSRP $315

Available on backorder

Description

Whether you are offshore fishing or just enjoying time on the water, feel confident and comfortable that the patented H2183 is your reliable source for heading information. The three-axis, solid-state compass combined with Airmar’s advanced sensors and software provide unparalleled performance.

What sets the H2183 apart from the competition is its ability to maintain 2° of heading accuracy under dynamic motion conditions such as steep heeling, hard turns, and rough seas. Heading integrated with three-axis rate gyro and three-axis accelerometer data allows the H2183 to maintain 2° of accuracy even if the vessel is pitching and rolling up to 30°. This level of accuracy is perfect for interfacing with autopilots, chart plotters, and radar systems. The H2183’s innovative circular design easily mounts and aligns on ANY angled bulkhead. Designed for simultaneous use with NMEA 0183 devices and an NMEA 2000® network, the waterproof, easy-to-install sensor can be wired with just a single cable.

NMEA 0183 Sentences

  • $GPDTM ………… Datum Reference $GPGGA ………… GPS Fix Data $GPGLL………….. Geographic Position—Latitude and Longitude $GPGSA…………. GNSS DOP and Active Satellites $GSGSV …………. GNSS Satellites in View $GPRMC ………… Recommended Minimum Specific GNSS Data $GPVTG…………. Course Over Ground and Ground Speed $GPZDA…………. Time and Date $HCHDG………… Heading, Deviation, and Variation $HCHDT ………… Heading Relative to True North $TIROT…………… Rate of Turn $YXXDR …………. Transducer Measurements: Vessel Attitude

NMEA 2000 PGNs

  • 127250…….Vessel Heading 127251……. Rate of Turn 127257…….Attitude 127258……. Magnetic Variation 129025……. Position and Rapid Update 129026…….COG and SOG, Rapid Update 129029…….GPS Position Data 129033……. Time and Date 129044…….Datum 129538…….GNSS Control Status 129539…….GNSS DOPs 129540…….GNSS Sats in View 129541…….GPS Almanac Data

Features

  • • GPS and heading combined into one housing •Saves installation time and money • Better than 1° heading accuracy in static conditions • Best-in-class 2° heading accuracy in dynamic conditions • Three-axis solid-state compass provides heading data • Three-axis accelerometer provides pitch and roll data • Three-axis rate gyro provides rate-of-turn data • Only recreational heading sensor that uses a three-axis rate gyro •Compass calibration can be easily done on any display or PC • Perfect product for metal hulled boats •WAAS GPS provides latitude, longitude, COG, SOG, time and date, and magnetic variation • Optionally available as GPS only (G2183) • IPX6 waterproof enclosure • Outputs NMEA 0183 and NMEA 2000® data simultaneously

Specifications

  • Weight: 124 g (4.4 oz.)
  • Three-axis Compass:
    • Static Accuracy: 1° RMS when level
    • Dynamic Accuracy: 2° RMS (Best-in-Class)
    • Display Resolution: 0.1°
    • Settling Time: 1 s (adjustable)
    • Data-output Update Rate:
      • NMEA 0183: 10 Hz
      • NMEA 2000®: Adjustable up to 20 Hz
  • Rate of Turn:
    • Range: 0 to 70°/s
    • Accuracy: 1°/s
    • Data-output Update Rate:
      • NMEA 0183: 2 Hz (adjustable up to 10 Hz)
      • NMEA 2000: Adjustable up to 20 Hz
  • Pitch and Roll:
    • Range: ±50°
    • Static Accuracy: <1°
    • Dynamic Accuracy: <3°
    • Display Resolution: 0.1°
    • Data-output Update Rate:
      • NMEA 0183: 2 Hz (adjustable up to 10 Hz)
      • NMEA 2000: Adjustable up to 20 Hz
  • Boat Alignment: Yes using software
  • Temperature:
    • Operating Range: -25 to 55°C (-13 to 131°F)
    • Storage Range: -30 to 70°C (-22 to 158°F)
  • Data-output Protocol: NMEA 0183 and NMEA 2000 data simultaneously
  • Power: 360 mW
    • Supply Voltage: 9 to 40 VDC
    • Supply Current: <30mA at 12 VDC
    • NMEA 2000 Load Equivalency Number (LEN): 1
  • Certifications and Standards: CE, IPX6, RoHS, IEC60945

Additional Information

  • 1° Static Accuracy
  • 2° Dynamic Accuracy
  • No Moving Parts
  • 3-Axis Compass
  • 3-Axis Accelerometer
  • 3-Axis Rate Gyro

Additional information

Weight 4 lbs
Dimensions 10 × 10 × 10 in
