NMEA0183 to SeaTalkNG Gateway
Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices…
NGW-1-STNG is the Raymarine SeaTalkNG option. This version enables users to convert NMEA 0183 data into SeaTalk NG and vice-versa, providing seamless integration with Raymarine products. The NGW-1-STNG option combines a standard NGW-1-ISO with a Raymarine SeaTalkNG adapter cable to interface legacy instruments to the NMEA 2000 based SeaTalkNG bus.

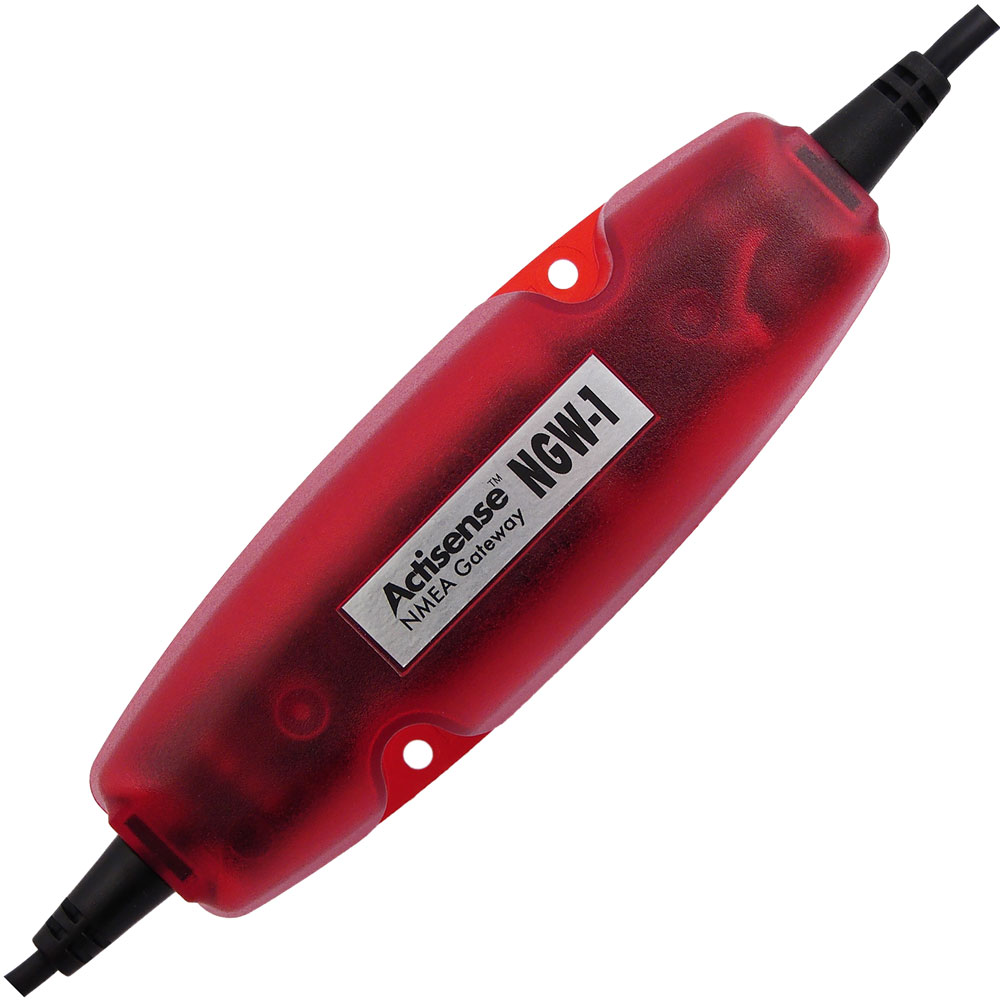

The Actisense NGW-1 NMEA 2000 Gateway is the easiest way to link between a boats old and new data networks. The NGW-1 can convert NMEA 0183 data into NMEA 2000 data and vice-versa.
Using the advanced configuration software provided, it is straightforward to set up which data conversions are required for both directions.
Please go to the Downloads tab to see the up to date list of conversions the various configurations can handle.
Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data items from one place to another.
The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.
Benefits of the NGW-1:
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Configure using NMEA Reader
